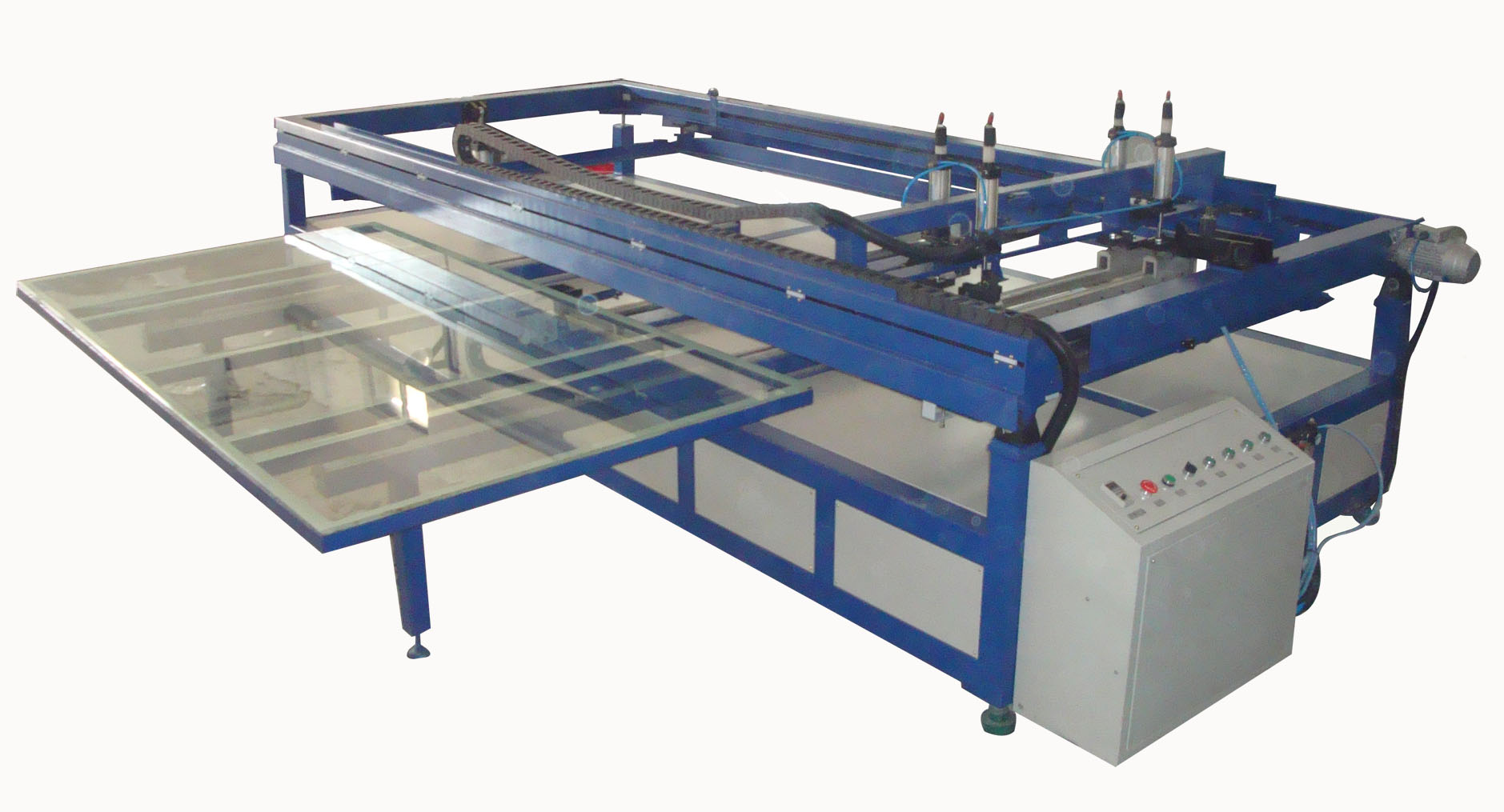

Stainless steel sheet screen printing machine

  • BJ-SCREENPRINT-1250

  • BJ

Availability:
Quantity:


Product Description:


This screen printing machine is using for screen printing big size stainless steel sheet, it can print different patterns to the surface of stainless steel sheet using screen printing net frame. The machine is automatic operation, high precision and fast speed.



Machine introduction:

1, Whole machine system operate simple and steady, print precision and operate safety.

2, Using linear guideway, pneumatic scraping blade, keeping print same pressure.

3, Print route use chain drive, speed is fast, route use proximity switch, which can keep off out of order.

4, Machine inside has frequency, print speed can be adjusted by itself.

5, Using pneumatic off-network, which can make print beautiful.

6, Main electric components use imported parts to control.




Main Parameters:



Machine outside size: 3500mm×3500mm×1100mm

Biggest screen printing area: 1250mm×2500mm

Biggest new frame size: 3700mm×1750mm

Voltage: 220/50V-Hz

Total powder: 2KW (customer prepare air pump 0.6—0.8Mpa)  air pressure: 0.6-0.8mPa

Biggest print speed: 12m/min

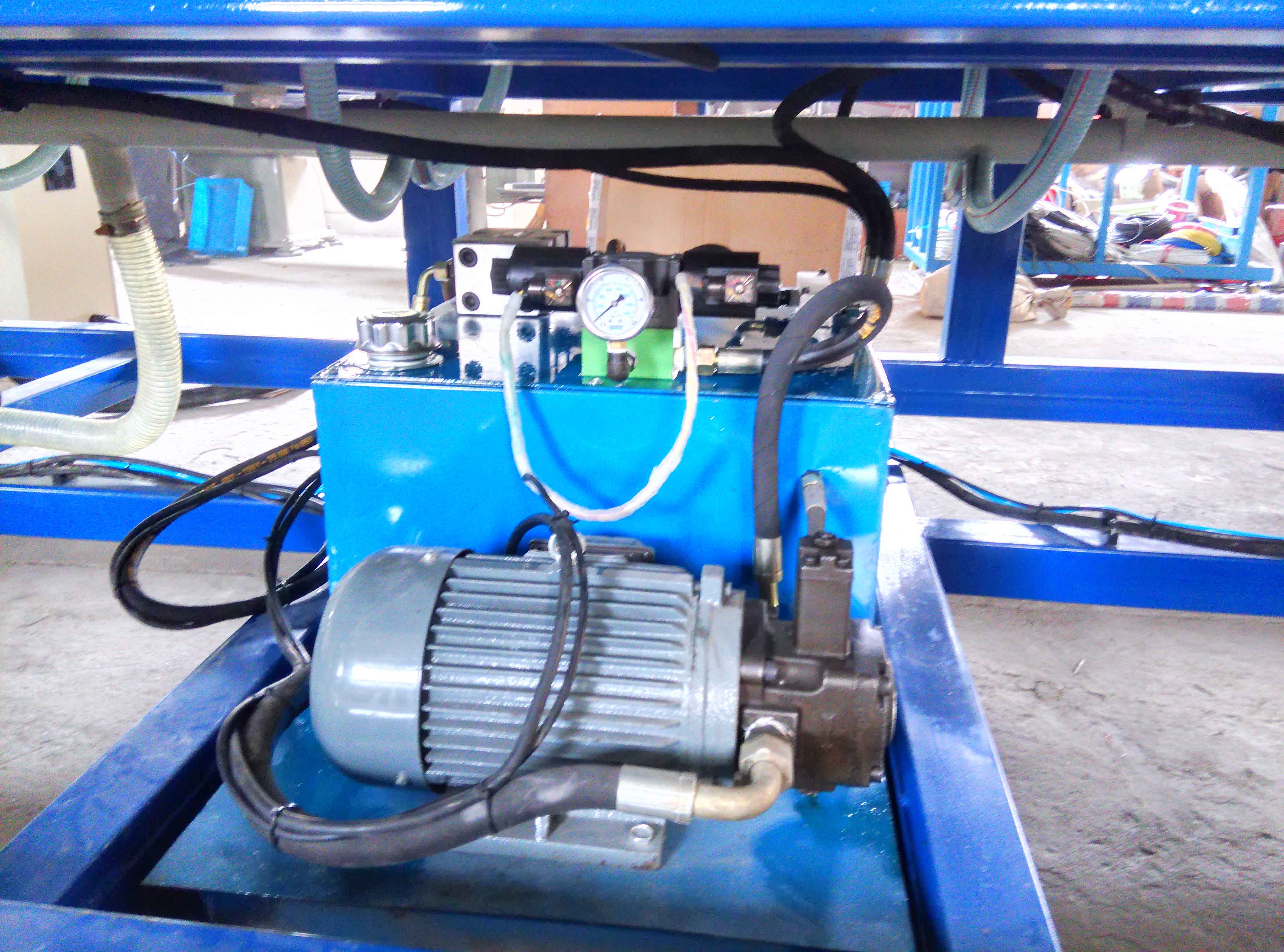

Detail picture of machine:



Stainless steel sheet screen printing machine 1.jpg
