Stainless steel sheet SB grinding machine

  • SBG-T2-1250-4

  • BJ

Availability:
Quantity:


Machine description:


Stainless steel sheet precision Hairline and No.3 No.4 dry grinding line is mainly applied to the stainless steel and other metal plate surface grinding/polishing process. After this process, the sheet surface will have shallow vertical short filaments and very smooth to get good surface decoration effect. Meanwhile, different depth (or thickness) of the filament can be produced by replacing grinding wheels with different grit grain size, to meet the needs of different grinding requirements. This machine has two functions, one is make No.3 or No.4 finish, another is make hairline finish.


This machine is dry type grinding/polishing equipment, is equipped with four nylon brush roller (grinding head for short) and a dust exhaust system.

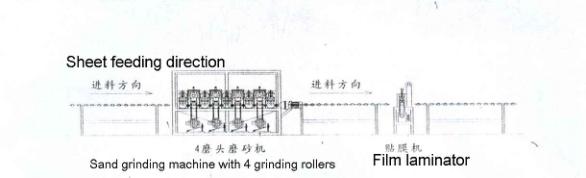

The Line is Composed of 1 Set of Main Machine, single-sided Laminator, 3 Sets of Roller Tables.


Using our company's patent technology, we have solved chatter marks or vibration marks very well on the sheet surface, which makes our technology to a high level in this industry.




Main Parameters:


Workpiece Thickness:  0.5~ 3mm

Workpiece Width:   1250mm or 1550mm

Workpiece Length:  ≥1000mm

Head Number:  4 pcs

Feed way:  rolls

Feed Speed:

             No3, No.4:4.8-15m/min

             Hairline 5-15m/min

Thickness adjustment accuracy: 0.01mm



Total Motor Capacity: ≤46KW

          Lift Motor:1.5 KW

Feed Motor:3 KW

           Grinding Head Motor:7.5 KW*4

          Swing Motor:1.5 KW*4

          Dust Collecting Motor: 5.5 KW

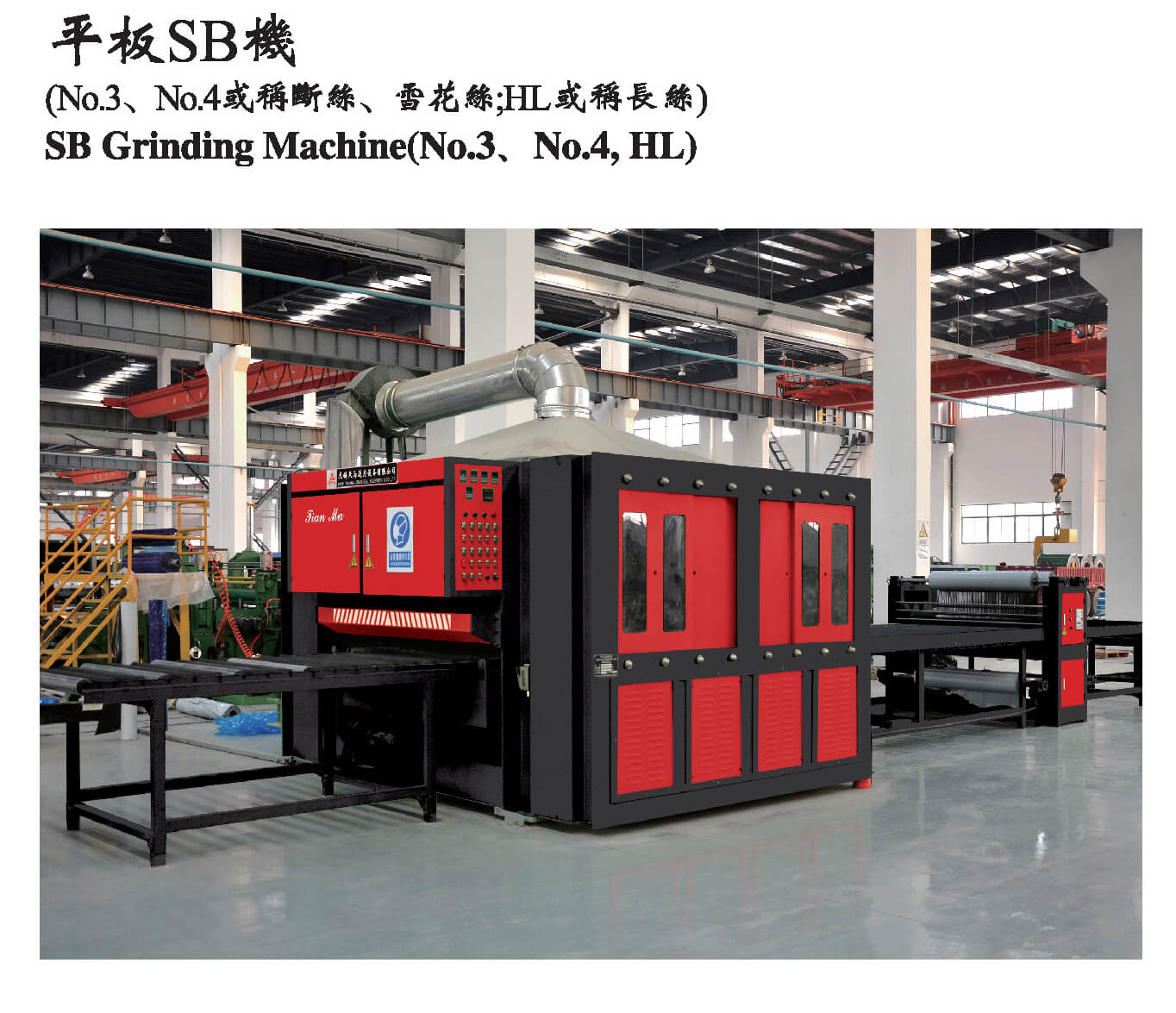

Pictures of machine parts:


SB machine (No.4, Hairline).jpg



SB grinding effect on sheet surface:




Stainless steel sheet SB grinding machine 1.JPG


Stainless steel sheet SB grinding machine 3.jpg

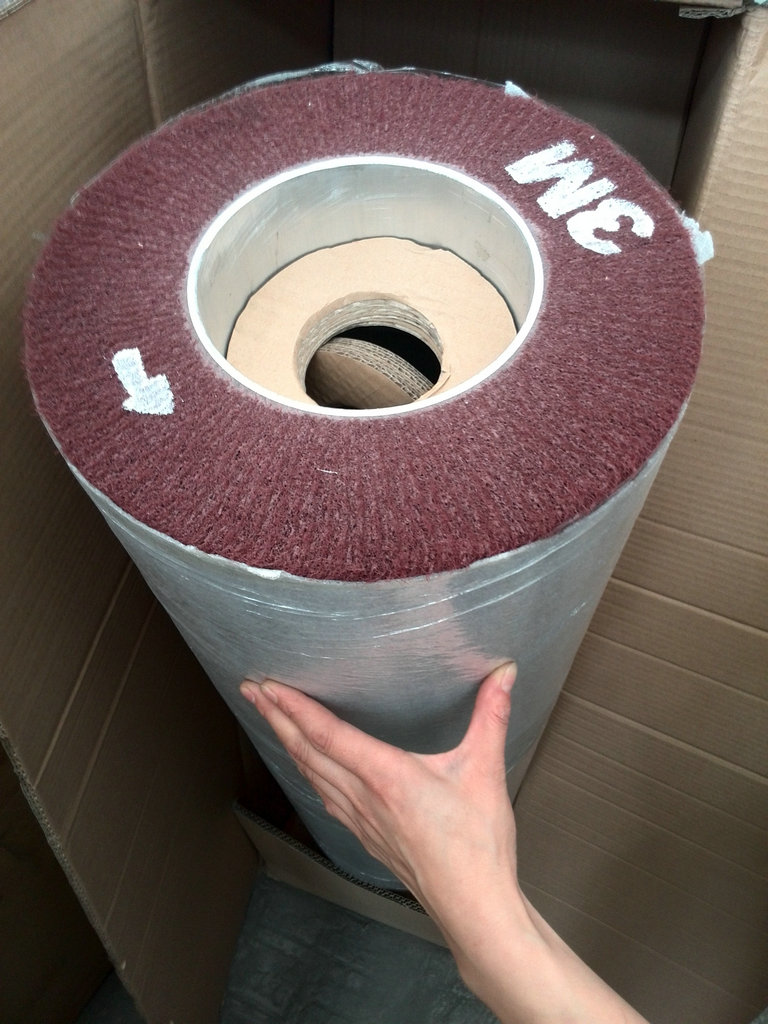

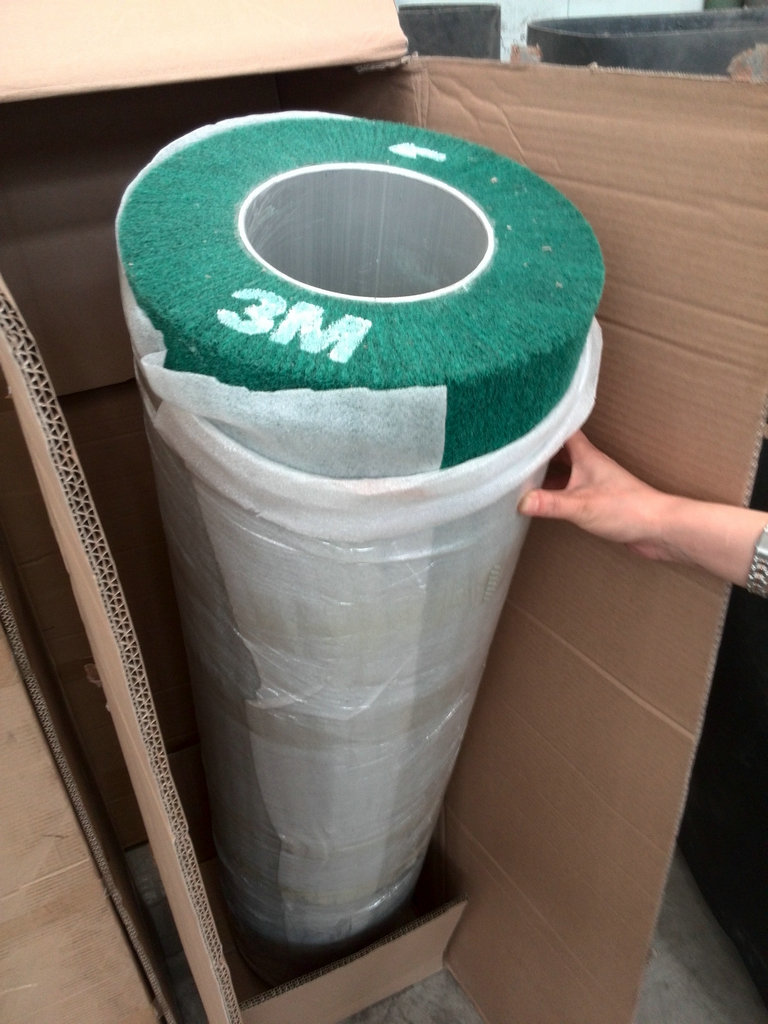

3M brush roller for SB grinding machine:


Stainless steel sheet SB grinding machine 3M brush roller.jpg


brush roller (4).jpg

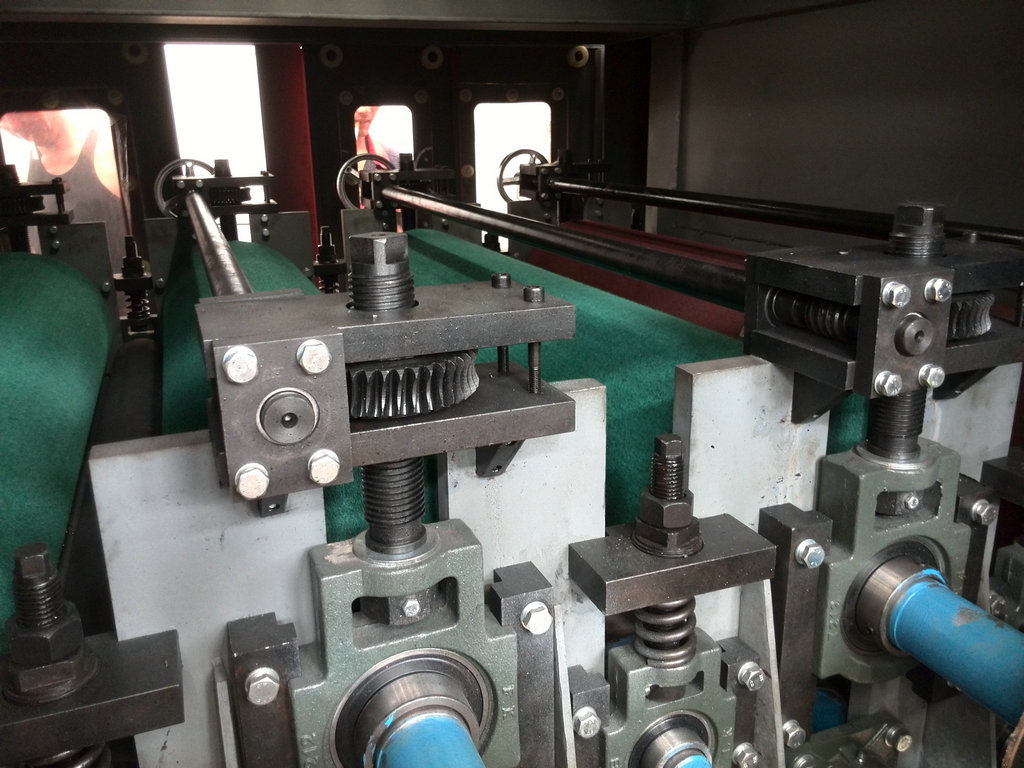

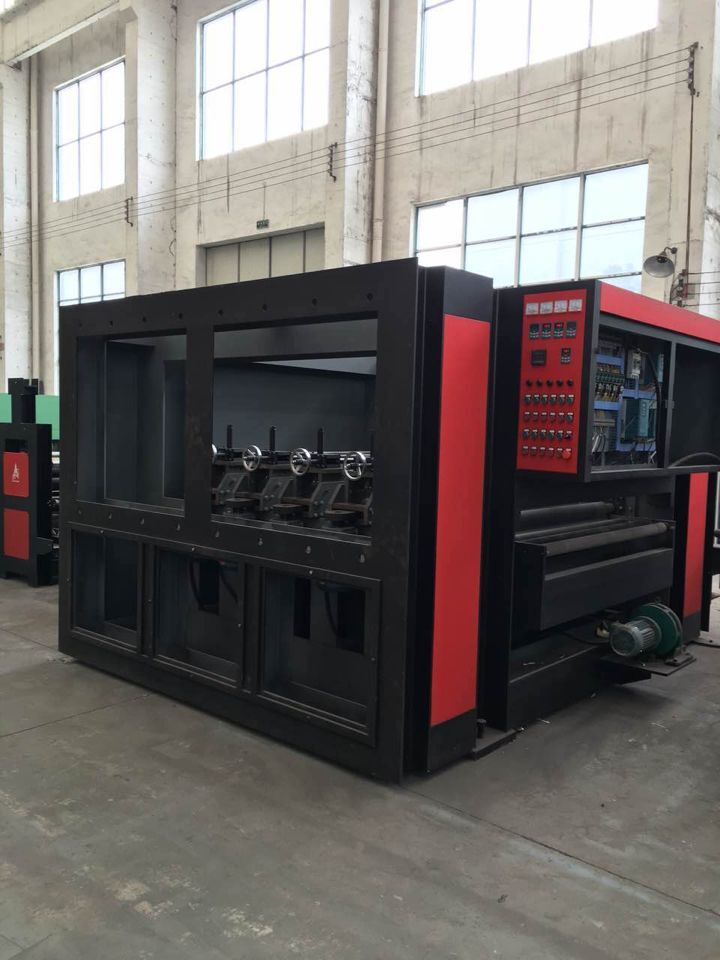

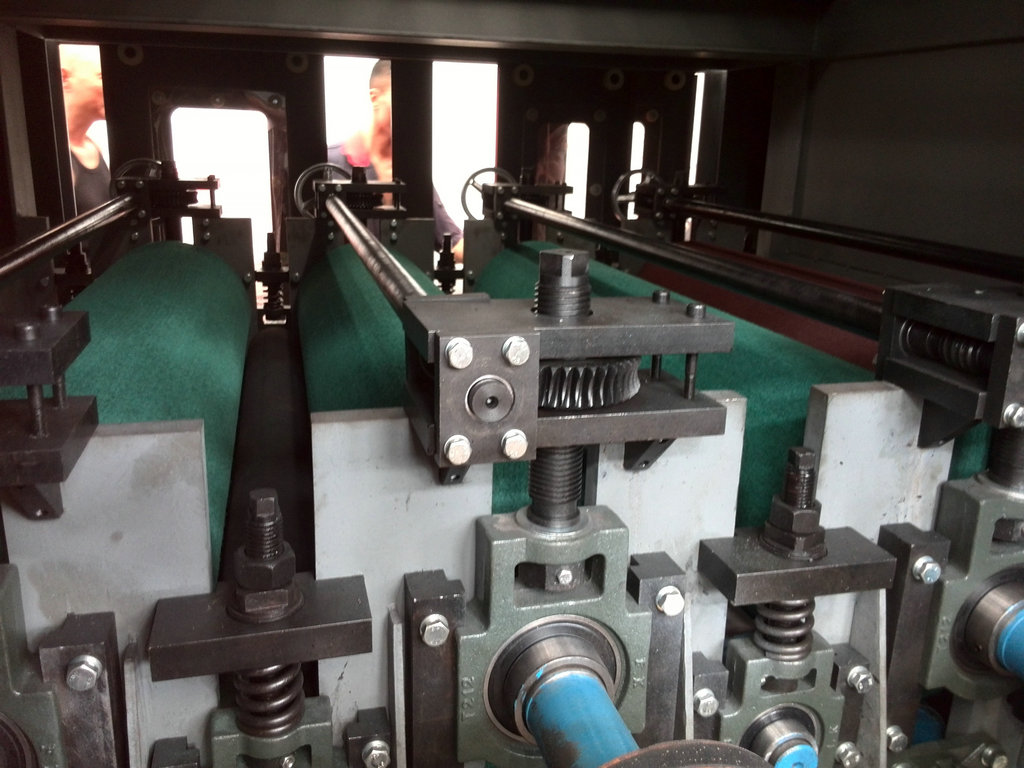

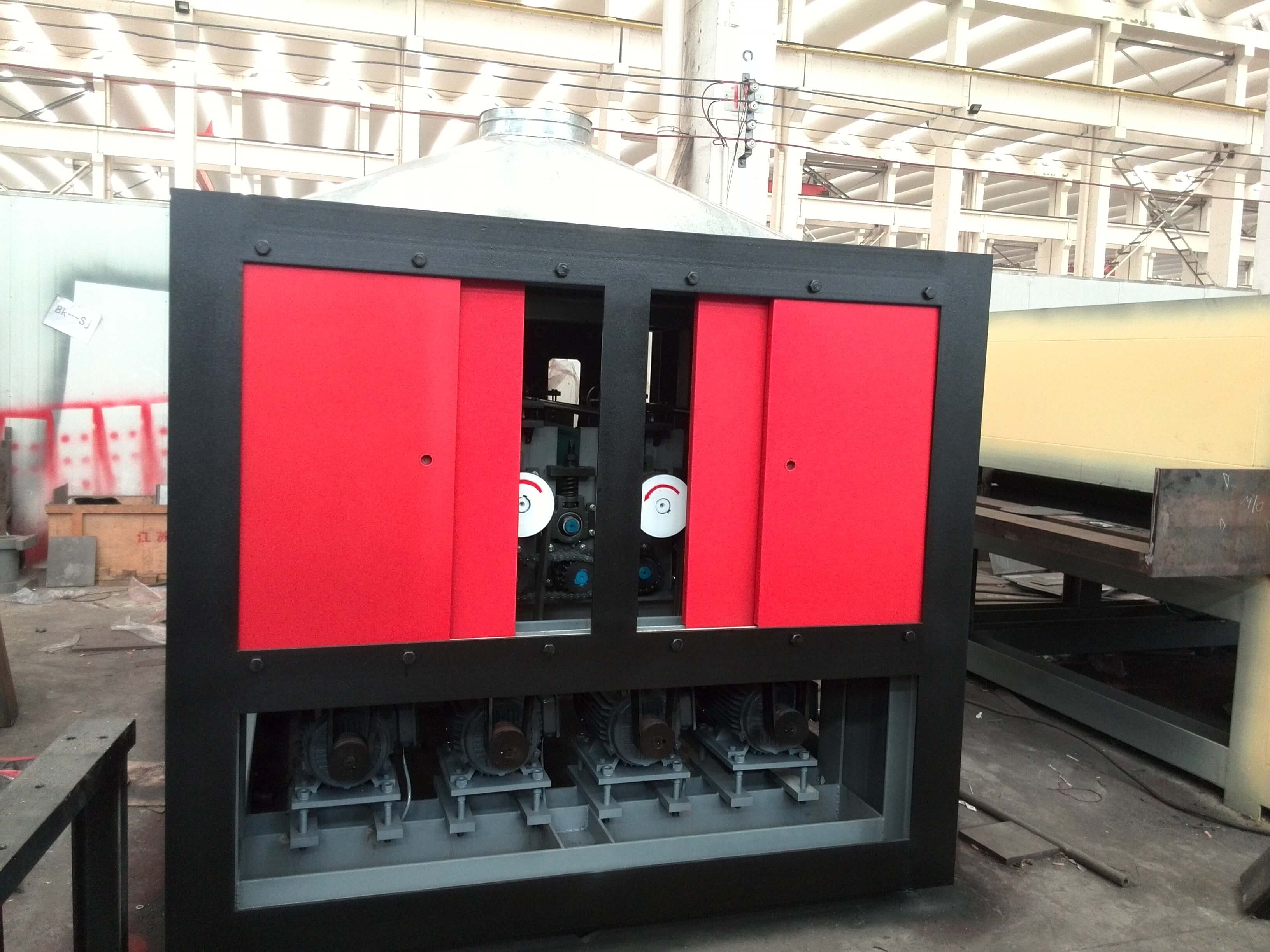

Detail machine parts:



Stainless steel sheet SB grinding machine 6.jpg


SB 3.jpg


Stainless steel sheet SB grinding machine 7.jpg


Stainless steel sheet SB grinding machine 8.jpg

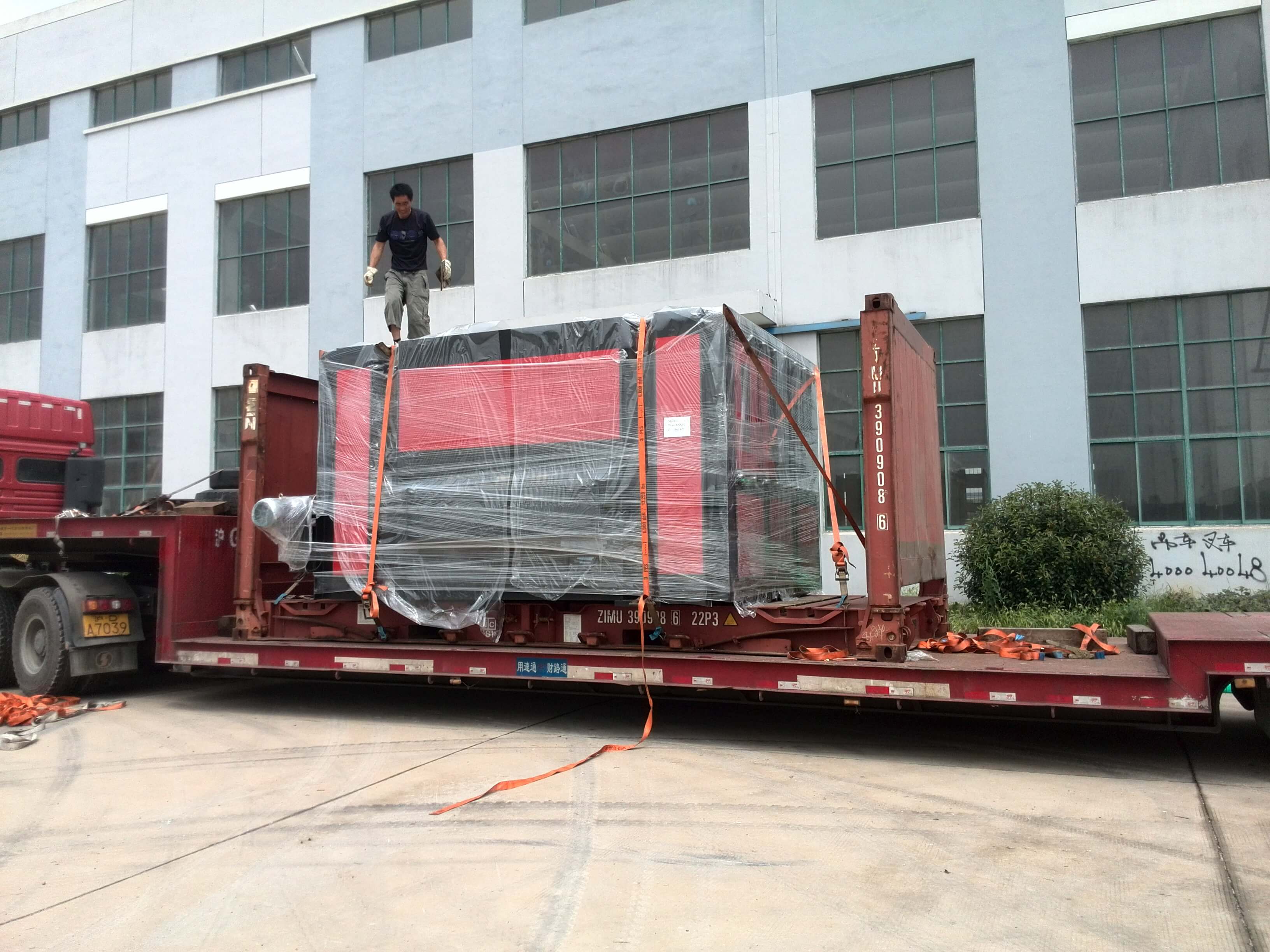

Shipment of machine:


Stainless steel sheet SB grinding machine 9.jpg
