Stainless steel sheet 8k mirror polishing machine

  • BJ-T2-1250-12

  • BJ

Availability:
Quantity:

Description of 8k mirror polishing machine:


8k mirror polishing machine can achieve Mirror-like (8K/No. 8) finish through polishing to the surface of stainless steel Sheet or coil, 8K, No. 8, means Mirror-like finish, bright reflective like mirror, and surface very smooth, which is conformed to the international 8k standard. No. 8 mirror-like finished sheets are suitable used in superior place, especially in elevator decoration, mobile phone shells and building decoration industry. Moreover, we can make the machine according to your specification.


We also have developed Acid-free and Zero-emission 8K mirror polishing machine, this machine is no acid pollution to the environment.


Our machine one section (group) has 8 polishing heads, normal standardized machine assembly is 9 sections, total 72 polishing heads, but using more polishing heads, the polishing effect will be more better.




Main technical parameter and specification:


Model Head Number Workpiece thickness (mm)    Workpiece width (mm) Feed speed (m/min)
BJ-T2-1250-12          96                0.5~3                  1250         0.5~1.5
BJ-T2-1550-12          96                0.5~3                  1550         0.5~1.5


Other parameters:

Workpiece Processing Length:                 ≥1500mm

Diameter of Polishing heads:                230mm

RPM of the Polishing head:                690 RPM/MIN

More details please check with our salesman.



Detail pictures of machine:

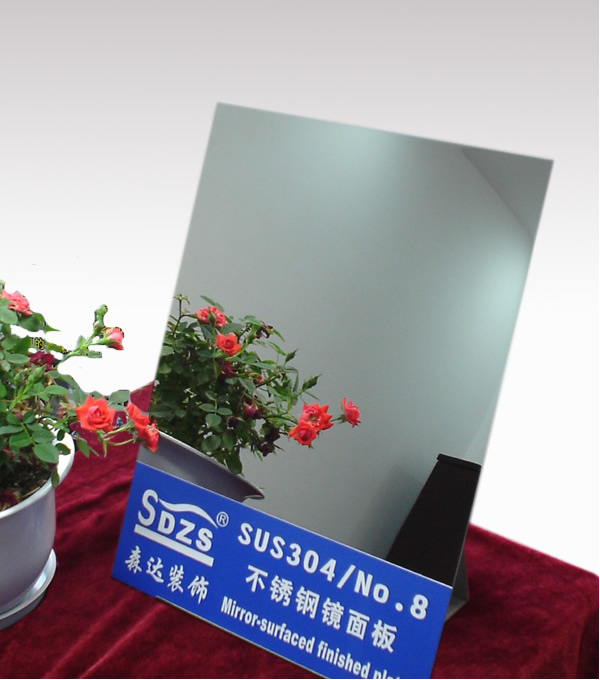

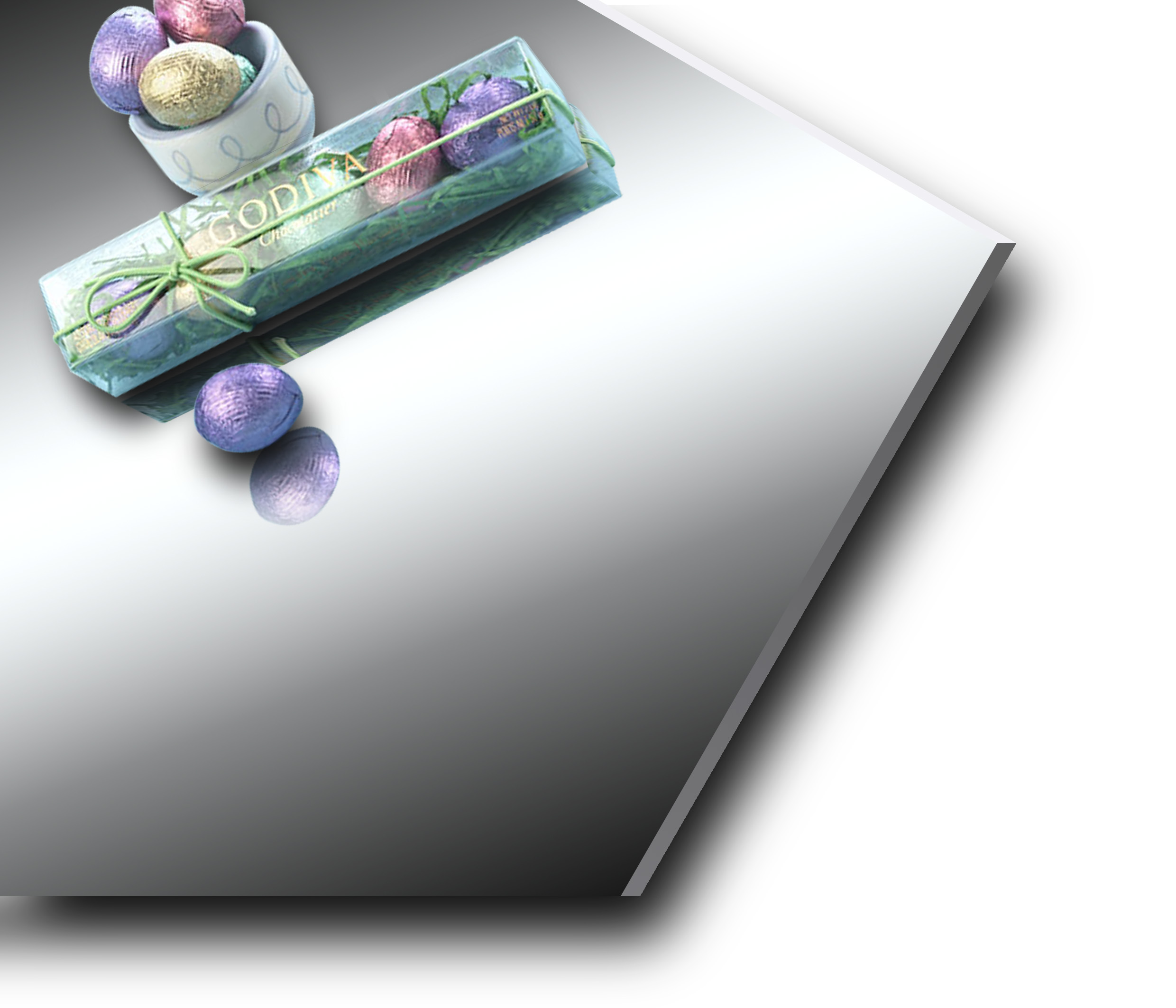

polishing plate mirror effect:




Machine detail parts pictures:

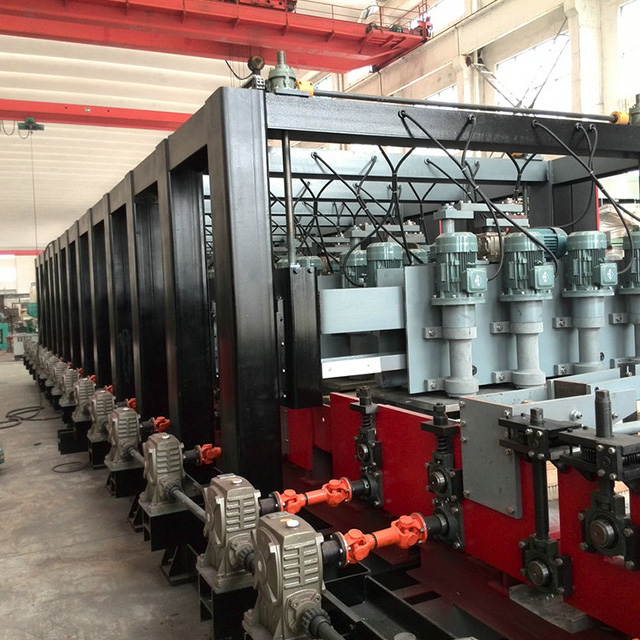

Direct-connected 8k mirror polishing machine.jpg

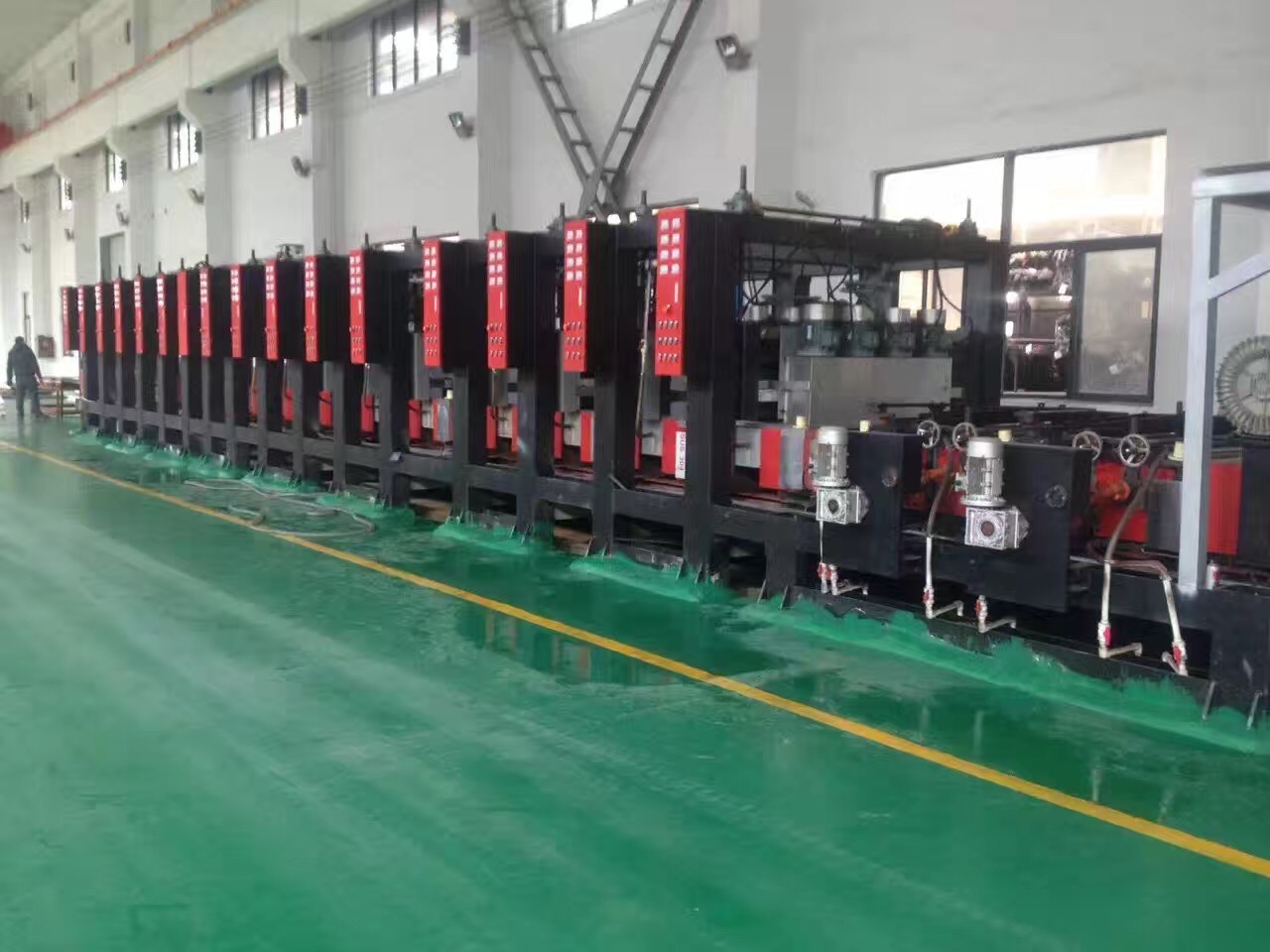

Stainless steel sheet 8k mirror polishing machine 5.JPG

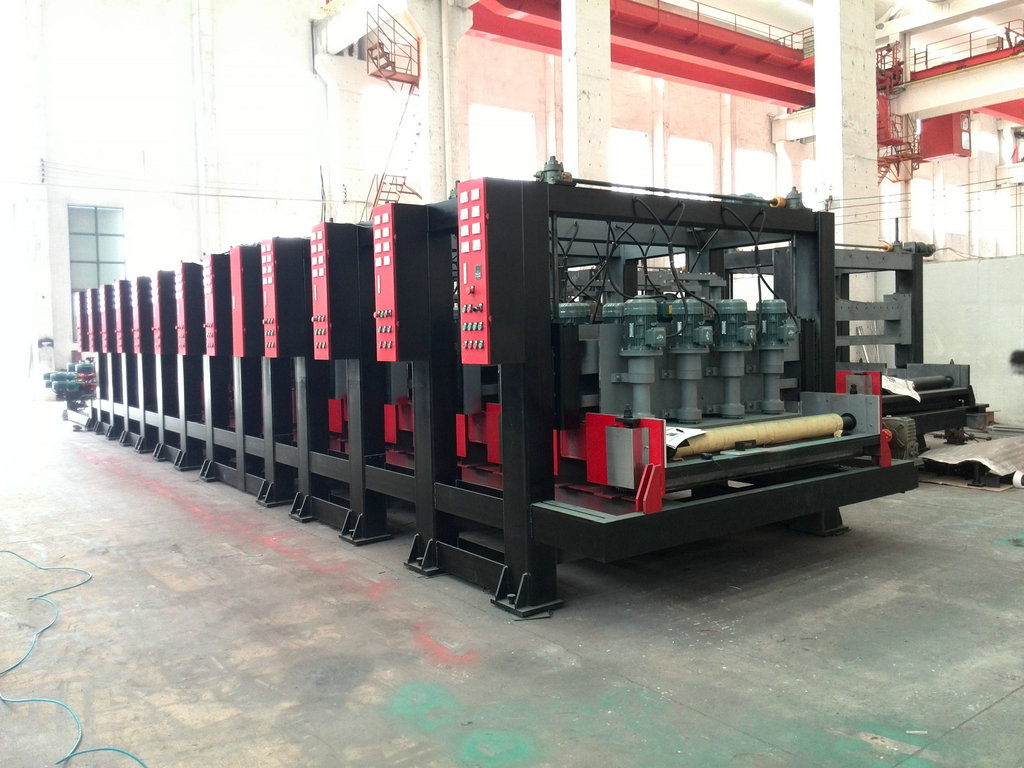

Stainless steel sheet 8k mirror polishing machine 6.JPG

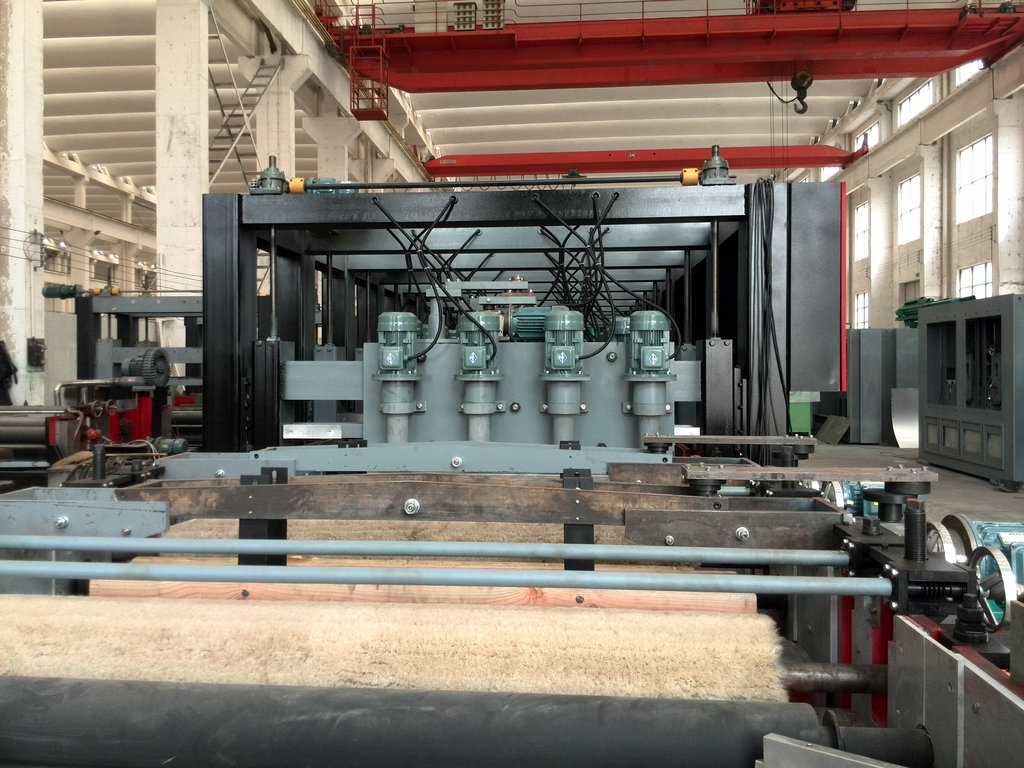

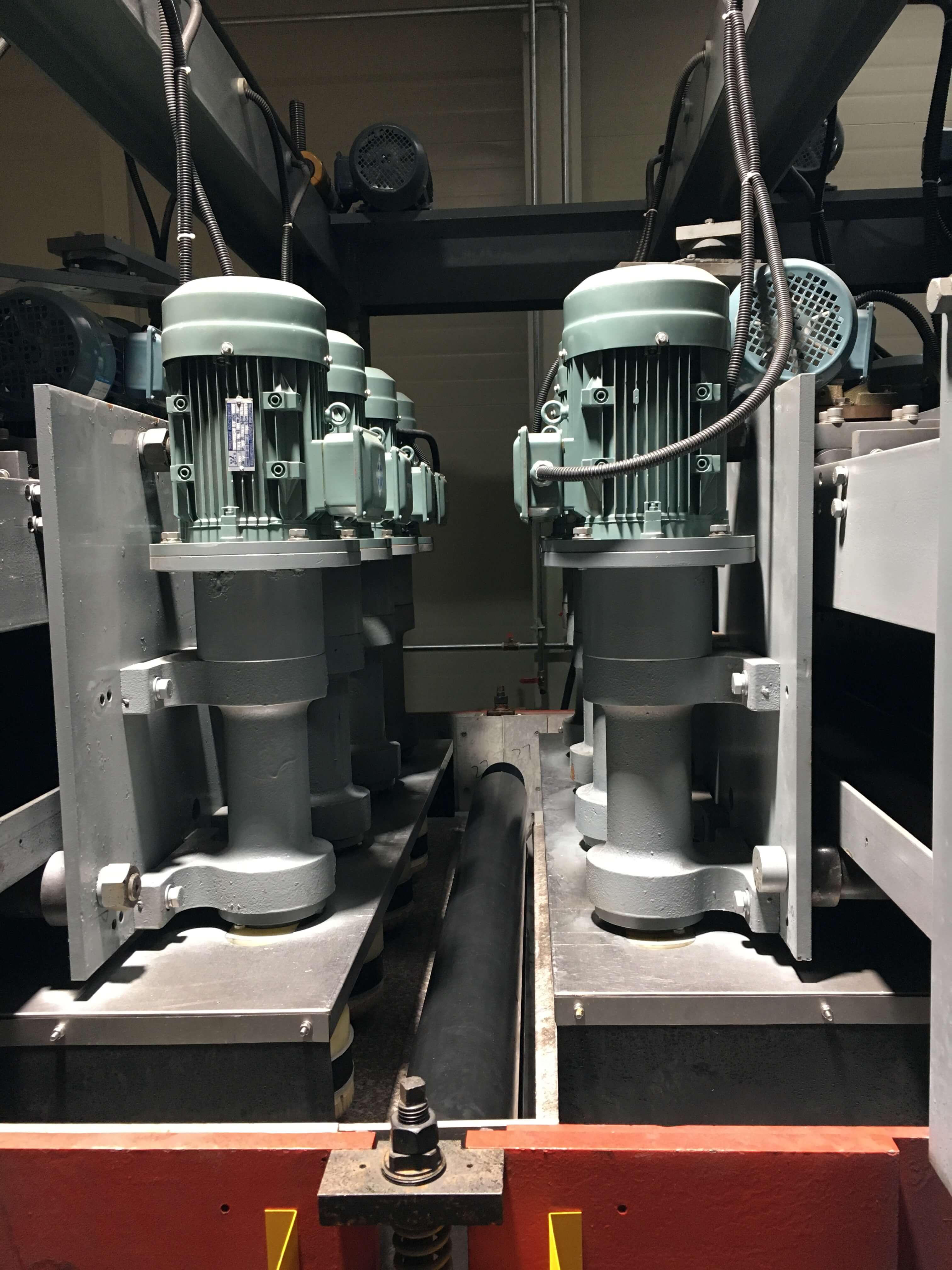

polishing head of machine(direct-connect, one polishing head using one motor):

Stainless steel sheet 8k mirror polishing machine 7.JPG

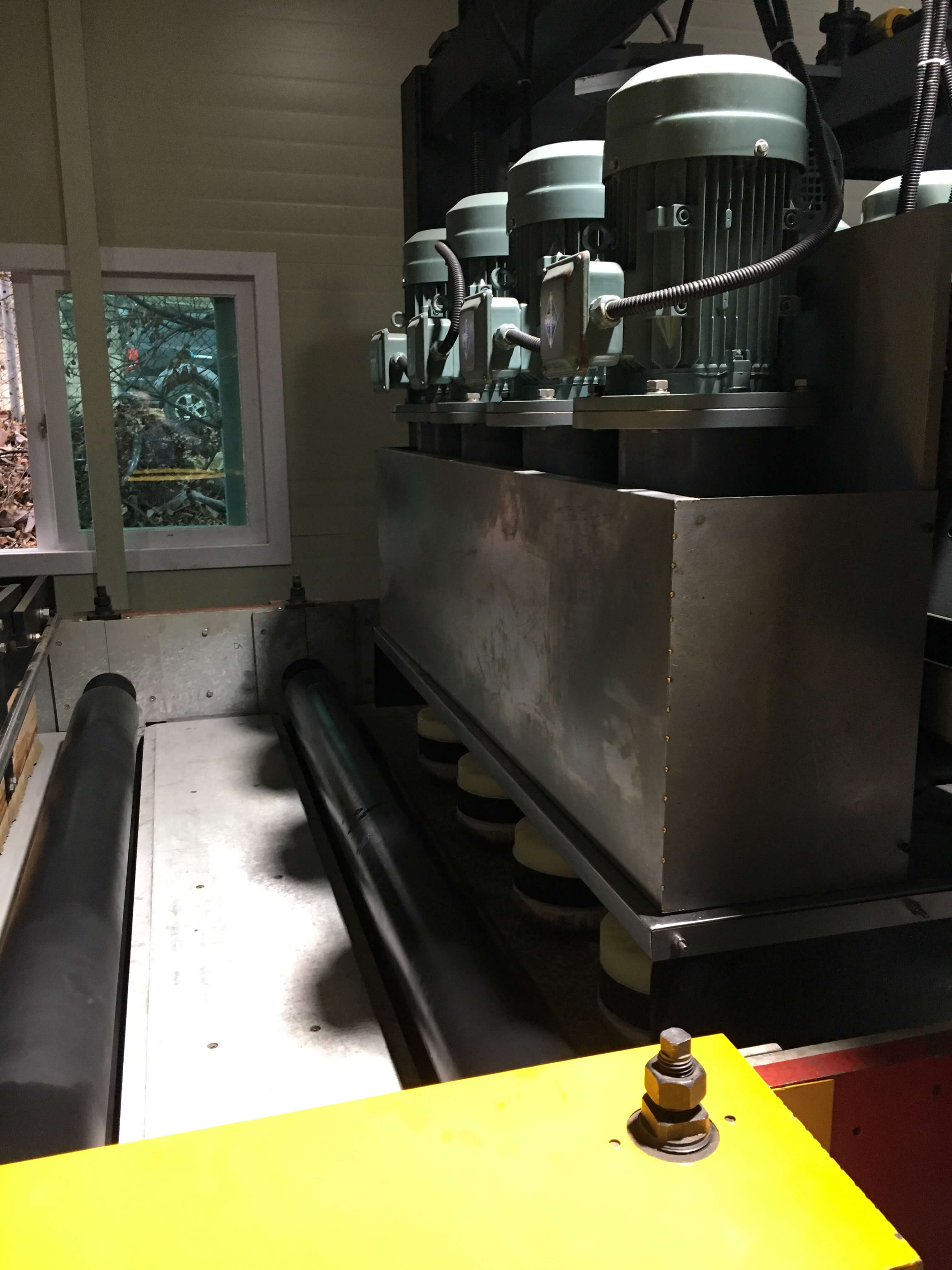

Stainless steel sheet 8k mirror polishing machine 8.JPG

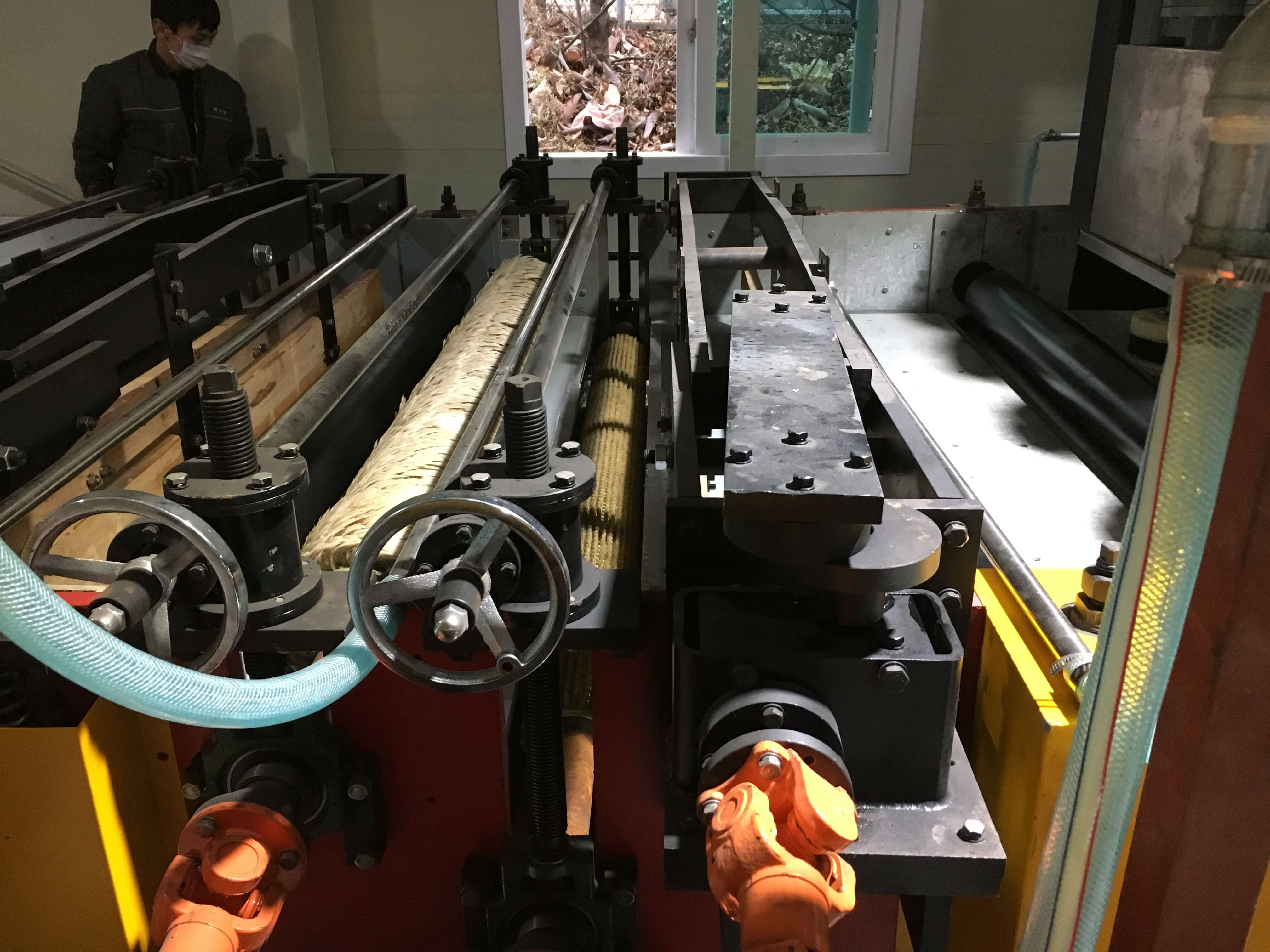

clean parts of machine:

Stainless steel sheet 8k mirror polishing machine 9.JPG

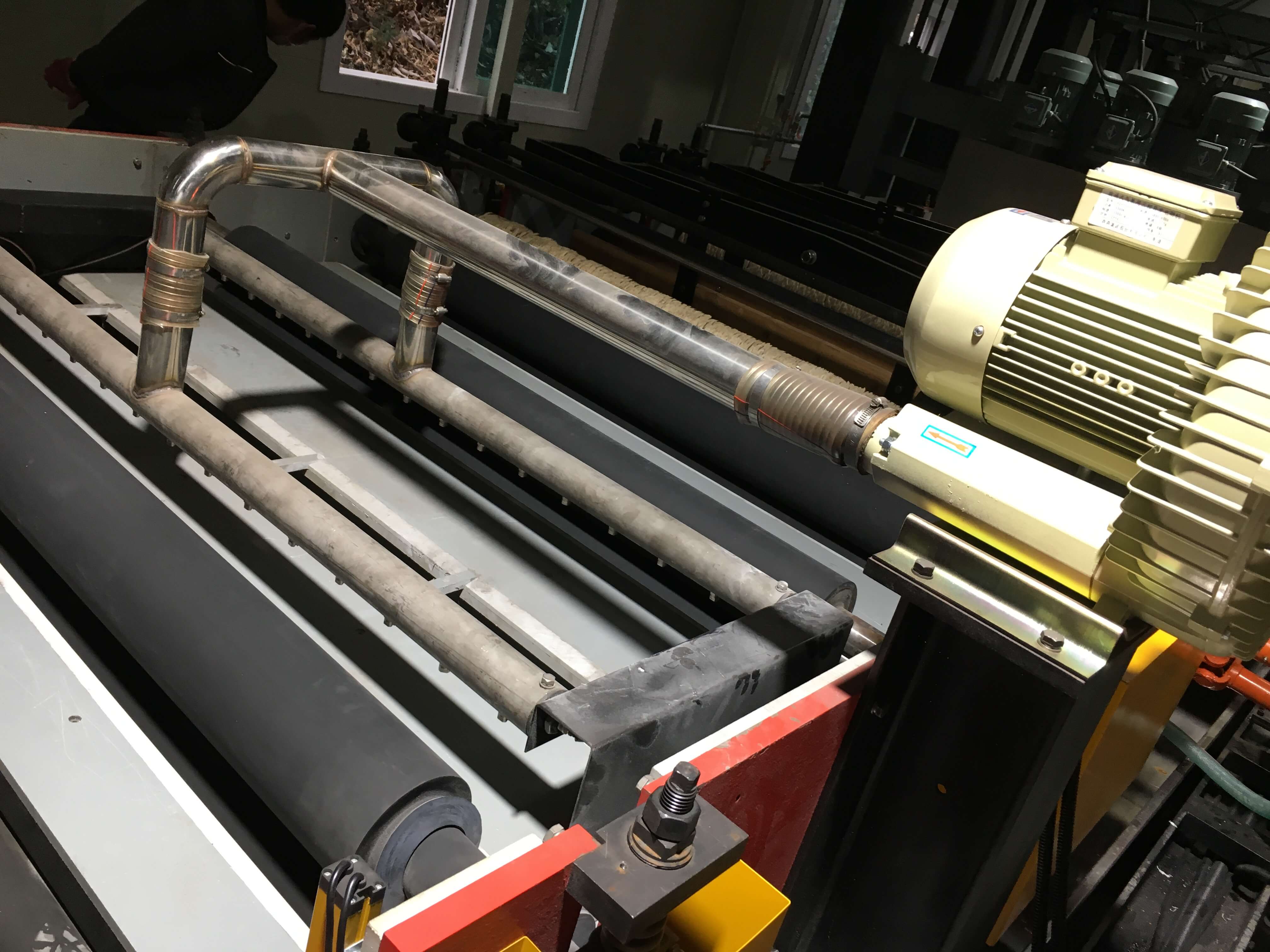

dry parts of machine:

Stainless steel sheet 8k mirror polishing machine 10.JPG

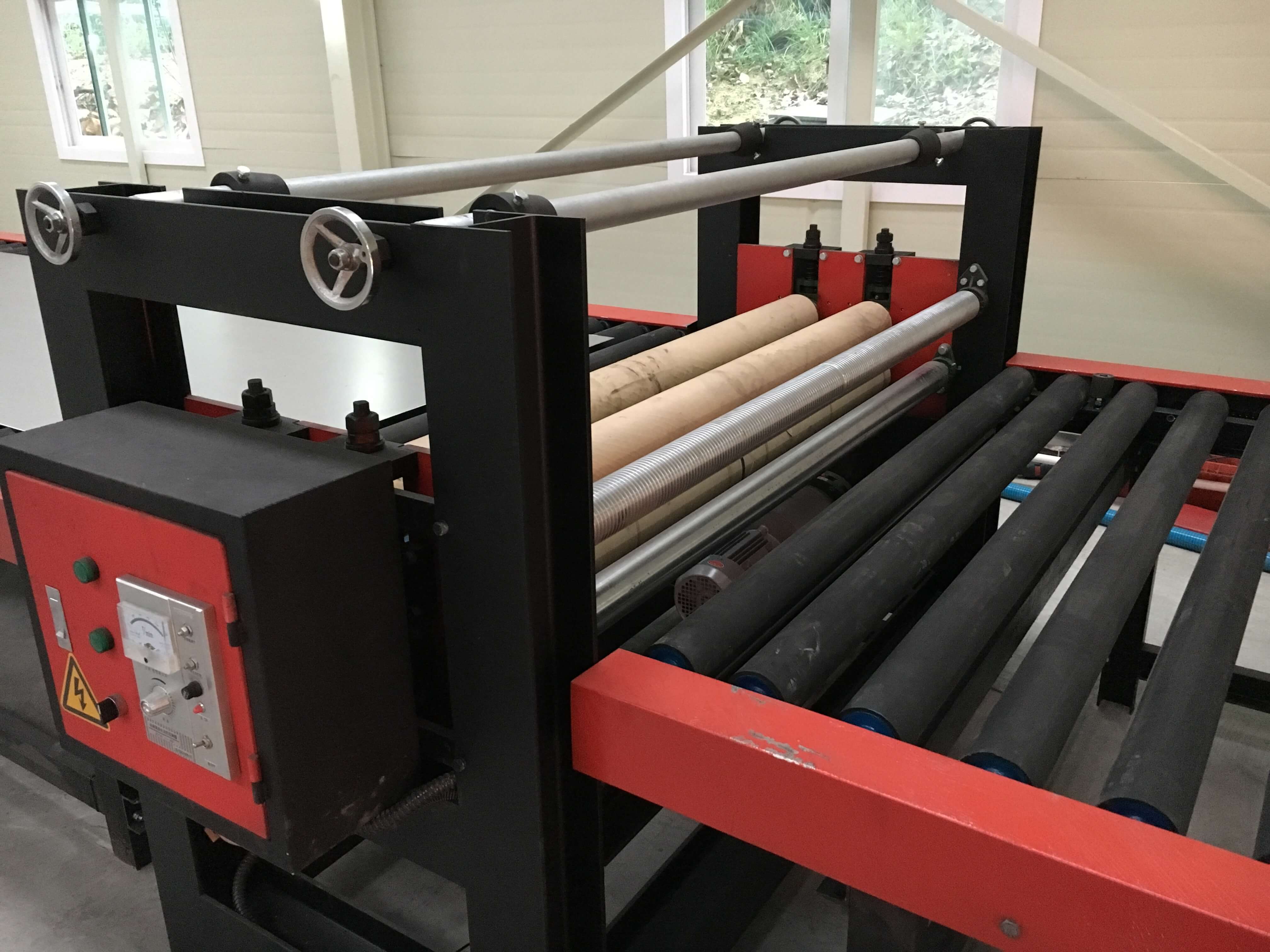

Film coating laminator machine:

Stainless steel sheet 8k mirror polishing machine 12.JPG


Test plate come out from machine:

Stainless steel sheet 8k mirror polishing machine 14.JPG

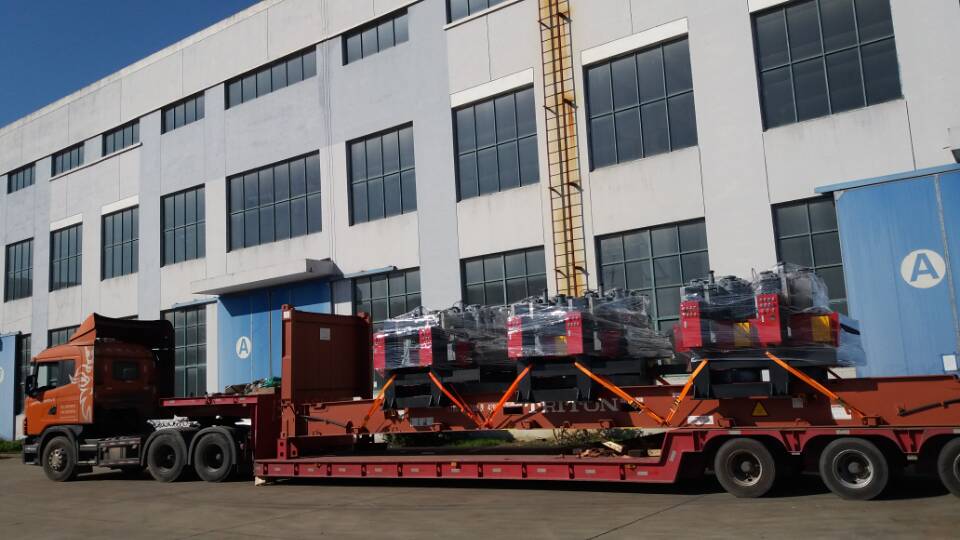

Packing and shipment of machine:

Stainless steel sheet 8k mirror polishing machine 17.jpg
