Shot blasting machine for Stainless steel press plate

  • BJ-SHOT-1600

  • BJ

Availability:
Quantity:


Product Description:


Sand blasting machine is constituted by carrier roller, sand blasting cleaning room, vertical roller, blasting dust removal system, electrical control system.

The shot blasting machine is very importand machine to produce stainless steel press plate in the HPL, LPM, MDF, and furniture industries.

The working principle is: the steel plate is transferred to sealed blasting cleaning room by roller transfer system, using high-speed rotating impeller of blasting machine to throw the steel shot to the surface of steel surface, to impact, shaving the surface of steel to remove the surface rust and dirt and get surface special design. Machine also can also remove the stainless steel surface stress concentration, can improve steel plate anti-fatigue performance, which can extend the plate using life.


Main Parameters:

Items

Unit

value

 plate size

 biggest width

mm

1600

 length

m

36

thickness

mm

2~10

 unit biggest weight

t

1

roller transfer speed

Frequency control of motor speed     range



m/min

0.33

Derusting quality grade


Sa2.5

consume energy

 power

kw

48

Compressed air consumption

m3/min

0.5

Compressed air pressure  range

MPa

0.40.6

blasting pit size and requirement


water and moisture proofing

machine size(not include dusting)


length:13.8m

width:6m

height:6.5m

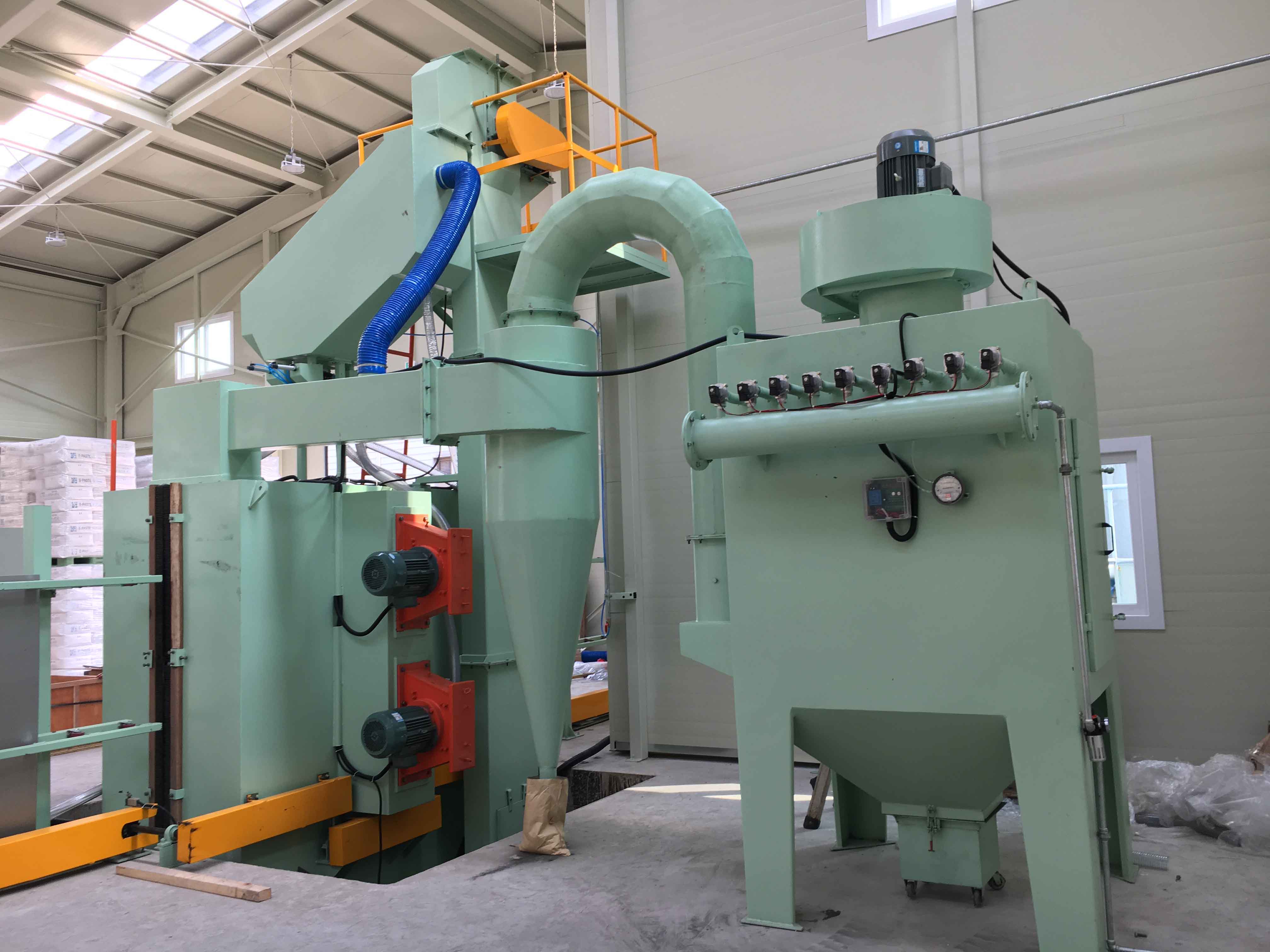

Detail pictures of machine:

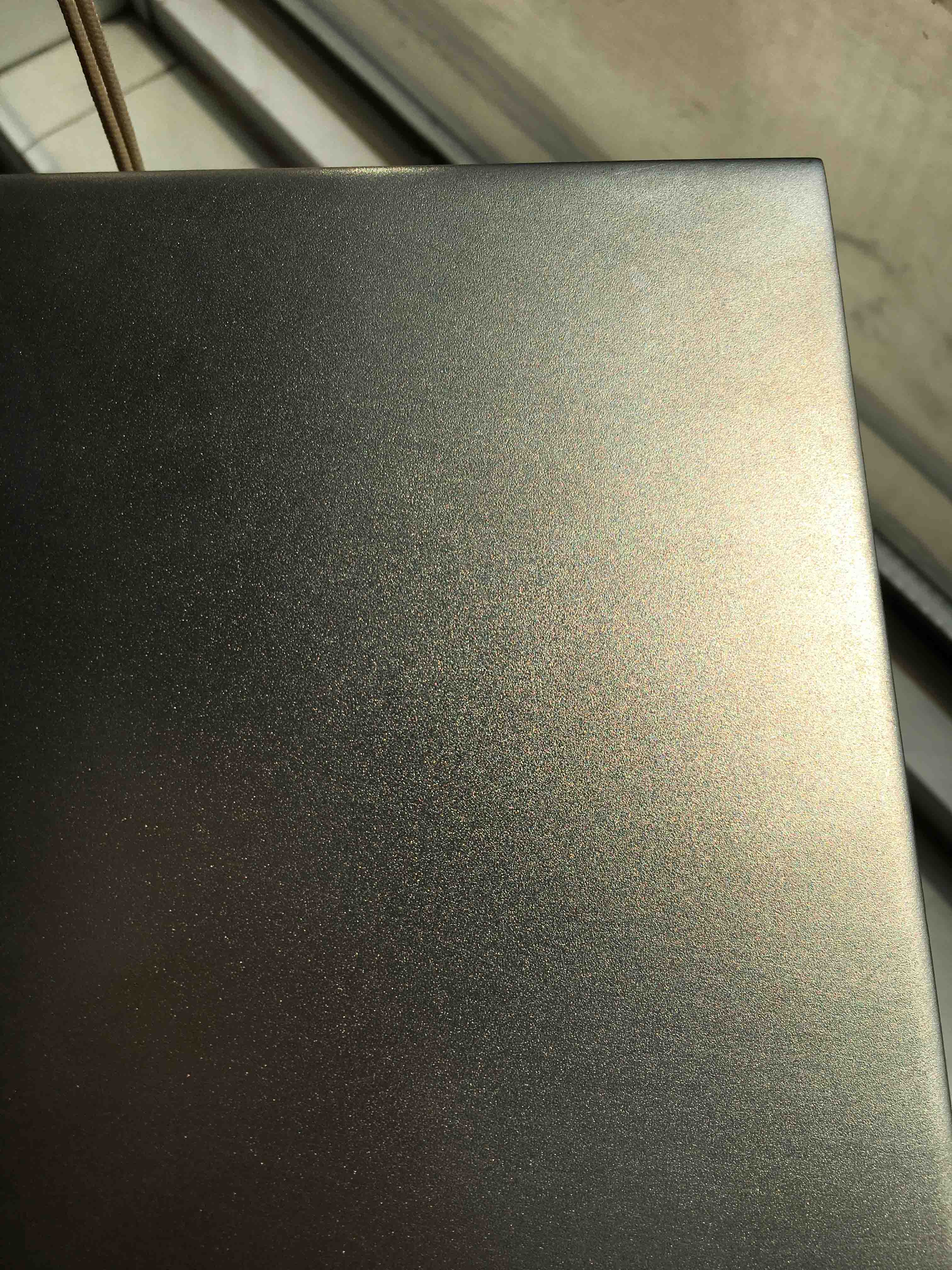

sand blasting effect of stainless steel plate:


The stainless steel ball  machine use:

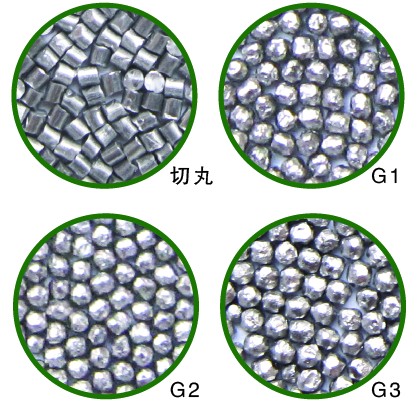

stainless steel ball.jpg

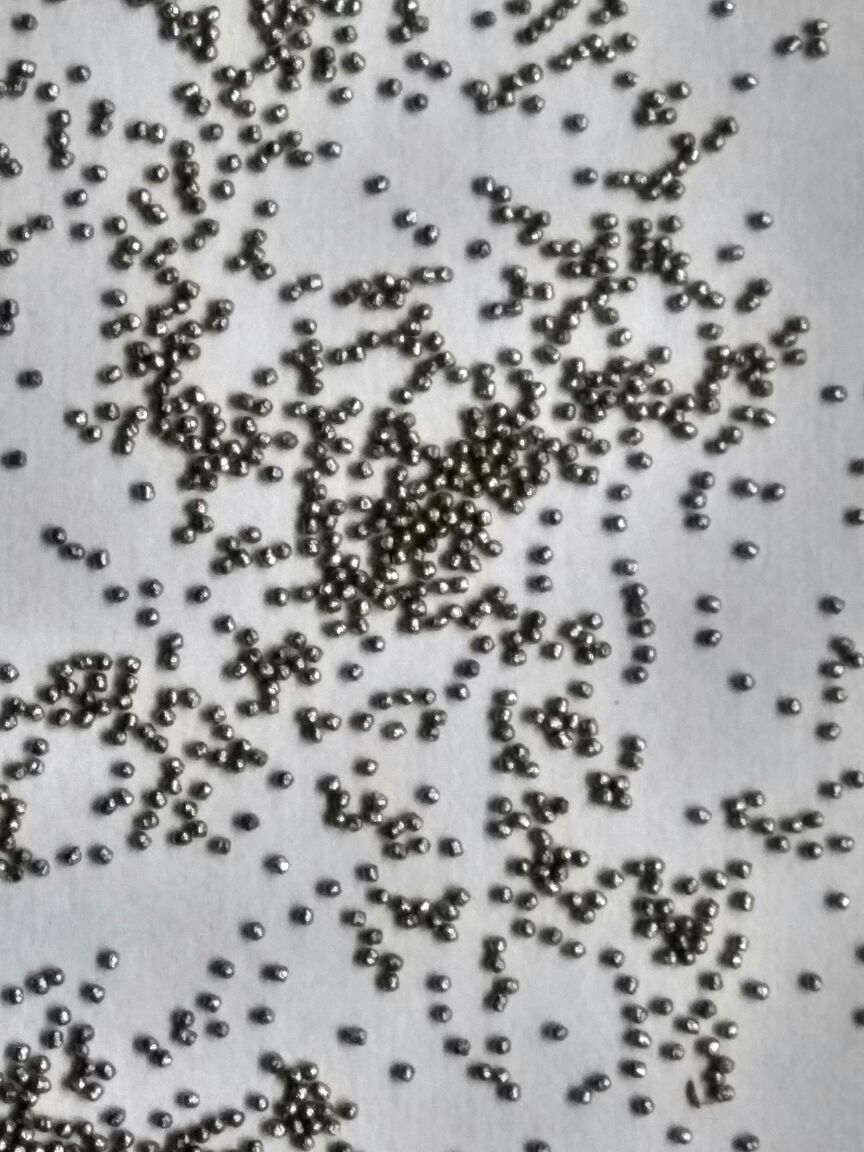

STEEL BALL(03-31-11-07-54).jpg

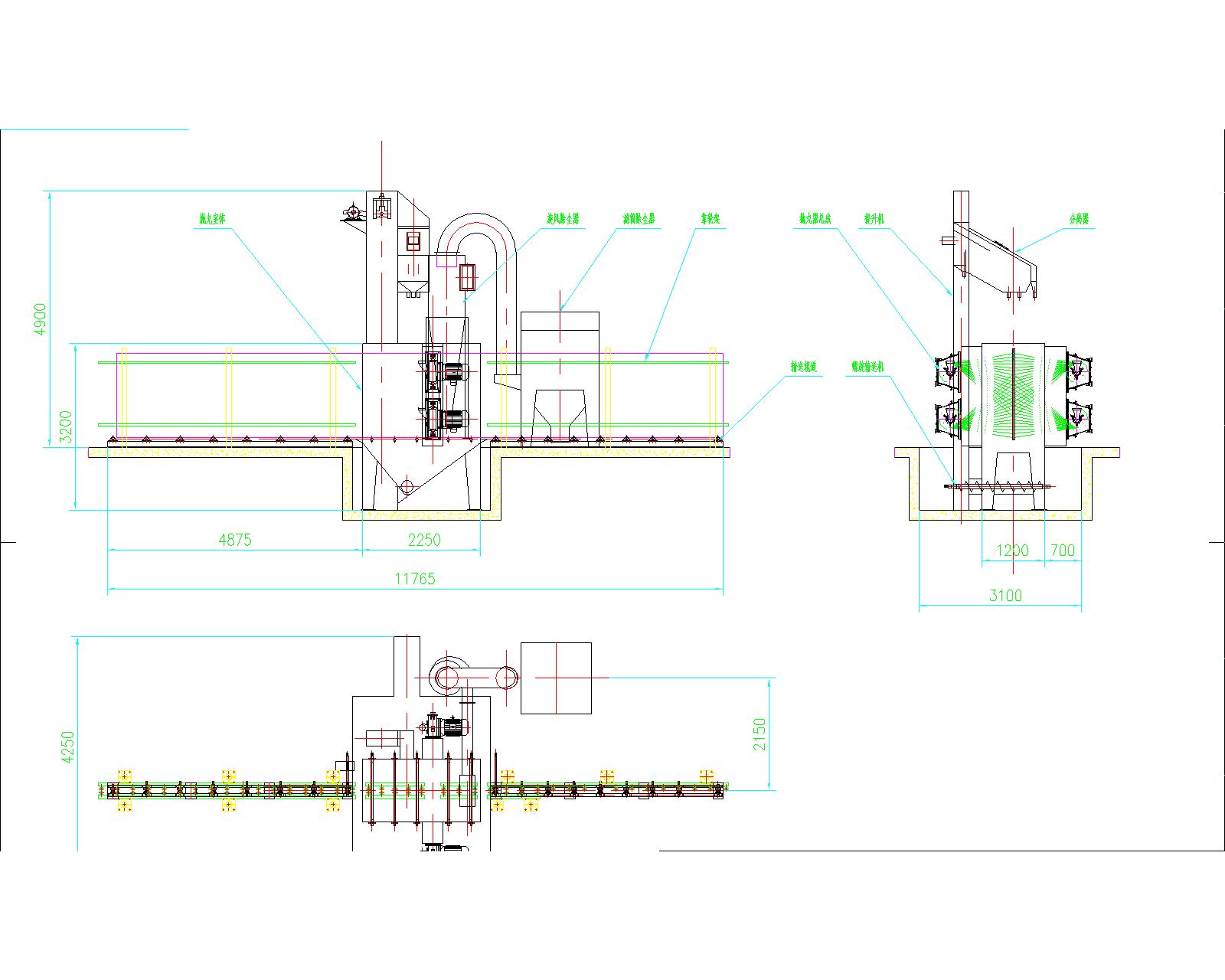

Machine layout:


Shot blasting machine for Stainless steel press plate 1.jpgDetail pictures of shot blasting machine:

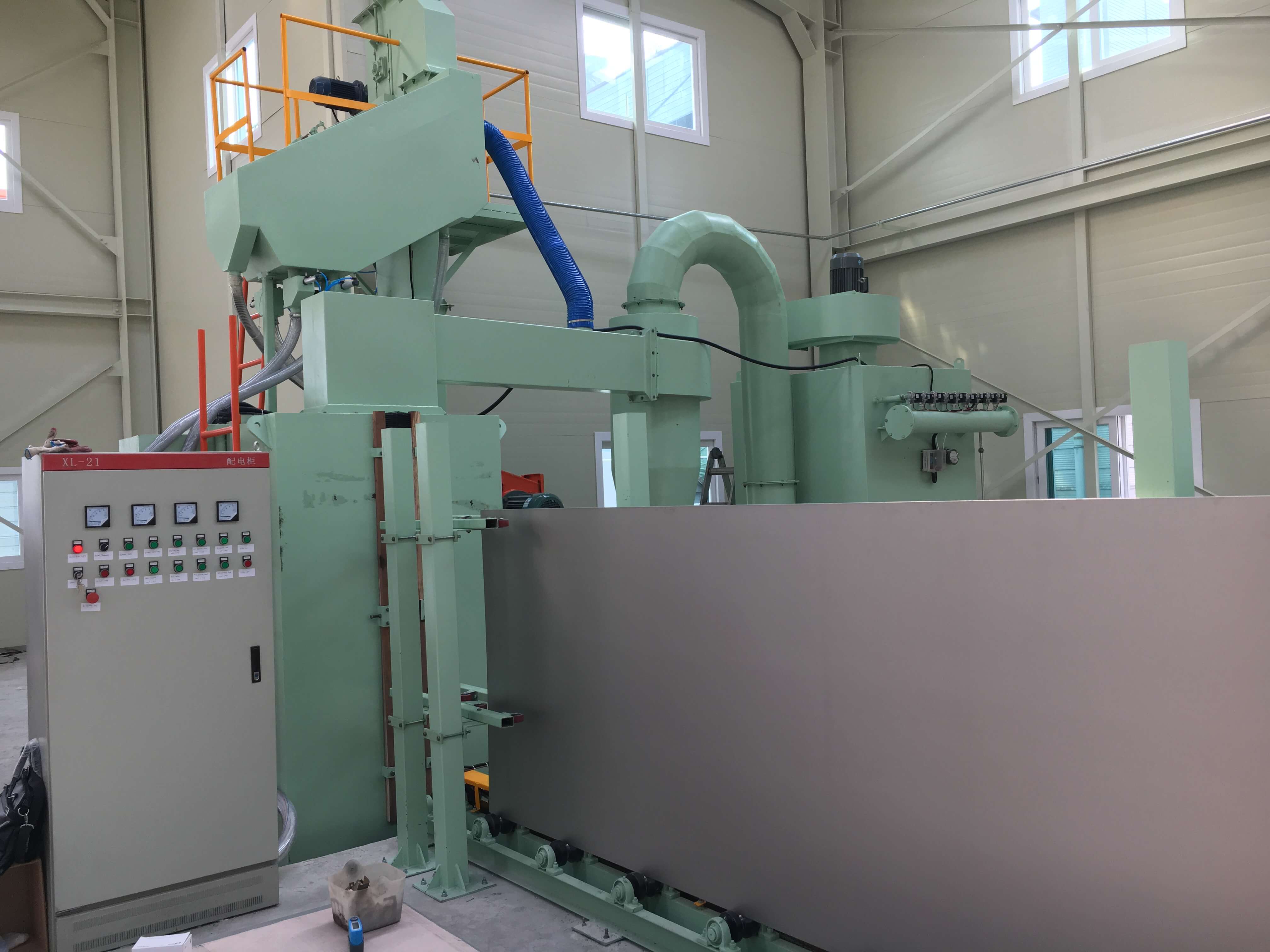

Shot blasting machine for Stainless steel press plate 2.JPG

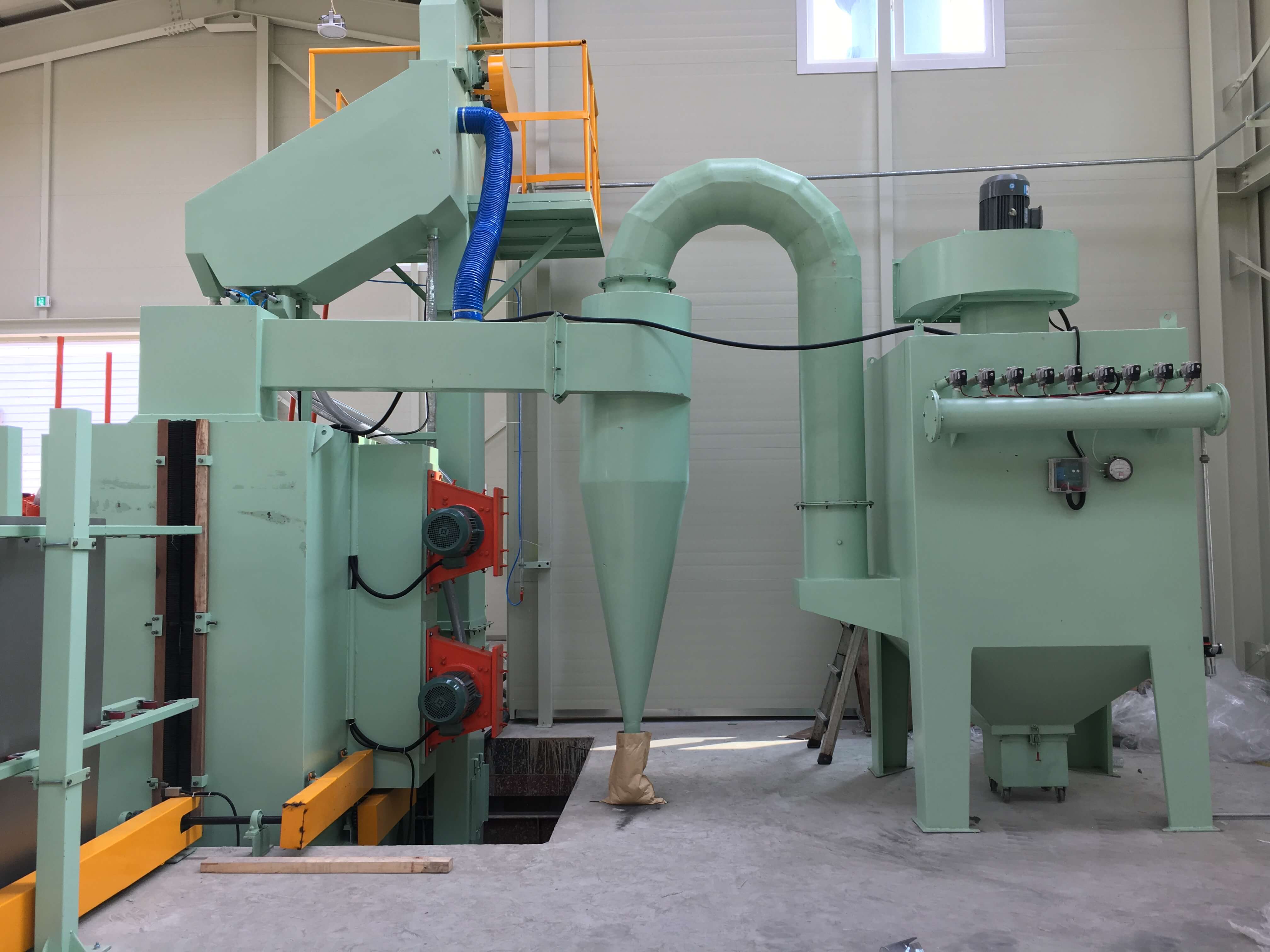

Shot blasting machine for Stainless steel press plate 4.JPG

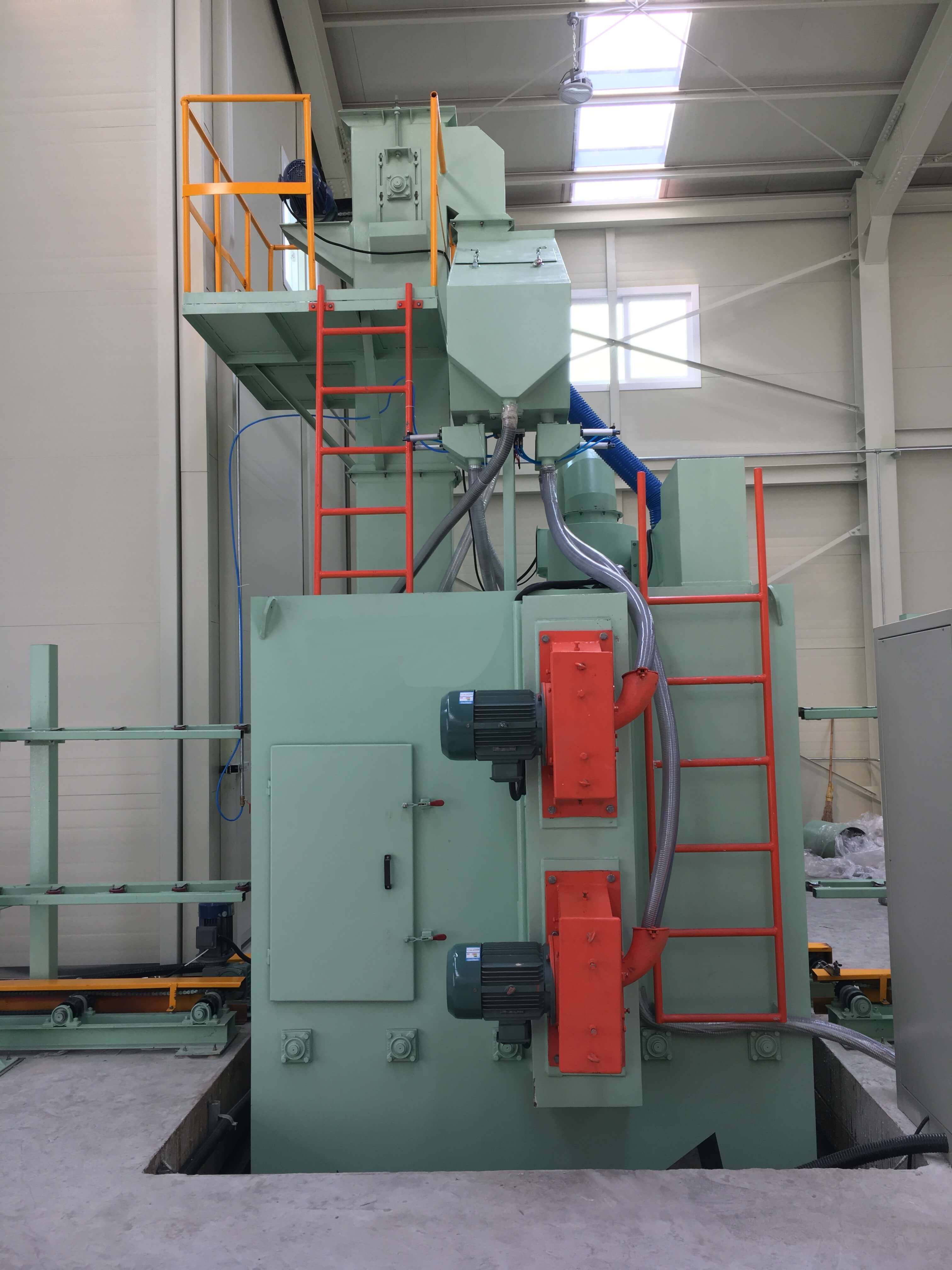

Shot blasting machine for Stainless steel press plate 6.JPG


Shot blasting machine for Stainless steel press plate 7.JPG

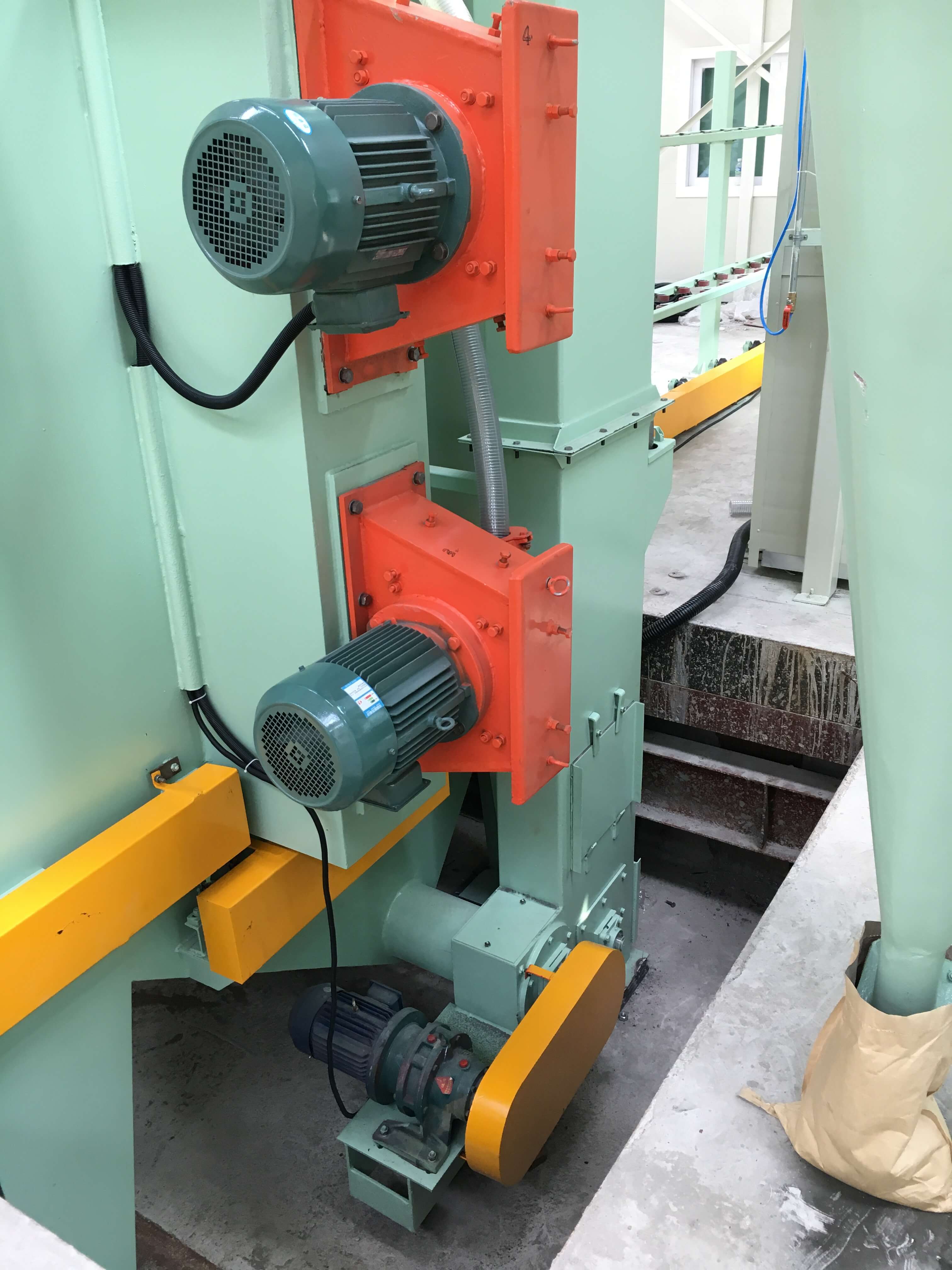

Shot blasting machine for Stainless steel press plate 9.JPG
