BJ-ETCHING-1300, BJ-ETCHING-1600
BJ
Availability: | |
---|---|
Quantity: | |
Product Description:
This etching machine function is mainly making chemical etching to the surface of big size stainless steel decoration sheet and press plate, after etching, it also has cleaning and drying functions, It has many advantages, such as high precision, fast speed, low labor strength, good surface finish.
Stainless steel decoration sheet is mainly used in elevator or building decoration,
Stainless steel Press plate is mainly used in HPL, LPM, FURNITURE BOARD and Flooring industries.
Main Parameters:
A. processing product:
1、 Material: stainless steel decoration sheet or press plate
2、 Faces of etching: double faces or single face
3、 Processing material width: 1219mm to 2500mm
4、 Nozzle: cone-shape
5、 Etching pump power: 7.5KW
6、 Electrical equipment: DELIXI
7、 Machine body material: 20mm PP plate
8、 Temperature resistance: 60 ℃
B. EQUIPEMTN COMPOSITION
THE WHOLE LINE IS EQUIPPED BY:
1, LOADING MATERIAL TABLE: ABOUT 2.5 METERS LONG.
2, ETCHING SECTION: ABOUT 4 METERS ETCHING AREA.
3, CLEANING AFTER ETCHING: ABOUT 2.7 METERS
4, TRANSFER INSPECTION TABLE: ABOUT 3.9 METERS.
5, WATER ABSORPTION SECTION: 1 SECTION.
6, BLOWING DRY SECTION: 1 SECTION.
7, UNLOADING MATERIAL TABLE: 2.5 METERS
8, ELECTRICAL CABINET
C. MACHINE PARAMETERS:
a、BASIC PARAMETERS:
1、PRODUCE MATERIAL WIDTH:1219mm to 2500mm;
2、THE SIZE OF MACHINE:About 13500×3400×1700(mm)(L×W×H)
3、TRANSFER SPEED:0.3m~4m continuously adjustable;
4、WORKING VOLTAGE: 380V THREE-PHASE FOUR-WIRE;
5、TEMPERATURE CONTROL:0~55℃;
b、THE CHEMICAL CAPACITY OF EACH FUNCTION SECTION:
1、 Etching area:about 2000KG
2、 Cleaning after etching:about250KG
c、MACHINE POWER:
1、 Ti pump power of etching section:5.5KW×4pcs;
2、 Sway motor of etching section:0.4KW×4pcs;
3、 Heater of etching section:5KW×2pcs;
4、 Ti power of cleaning after etching section:1.5KW;
5、 Transfer motor:2.2KW;
6、 Electrical heater of dry area:2.4KW;
7、 Electrical fan of dry area:3KW;
The whole power of machine:about 43KW.

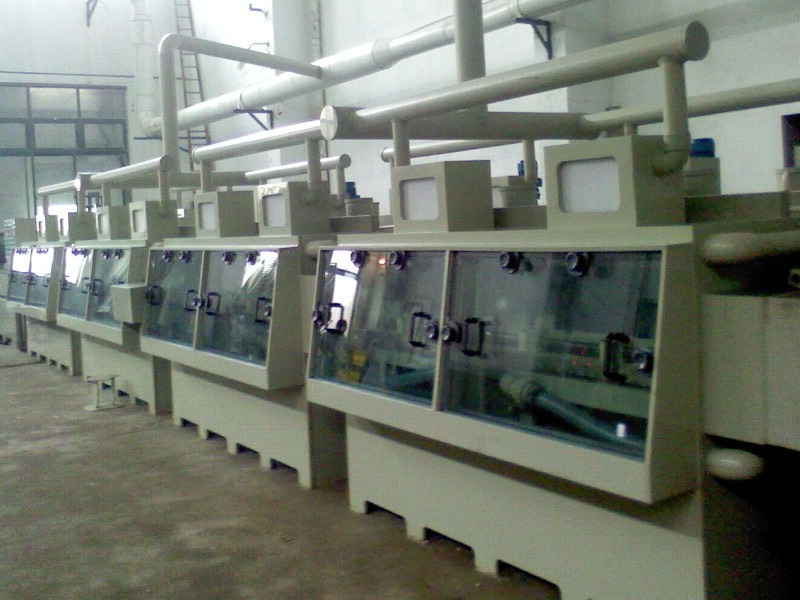

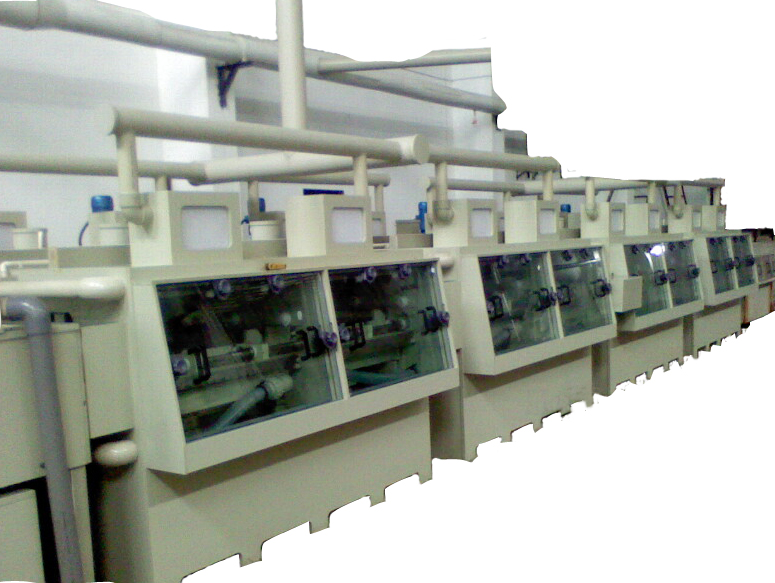

Detail pictures of etching machine:

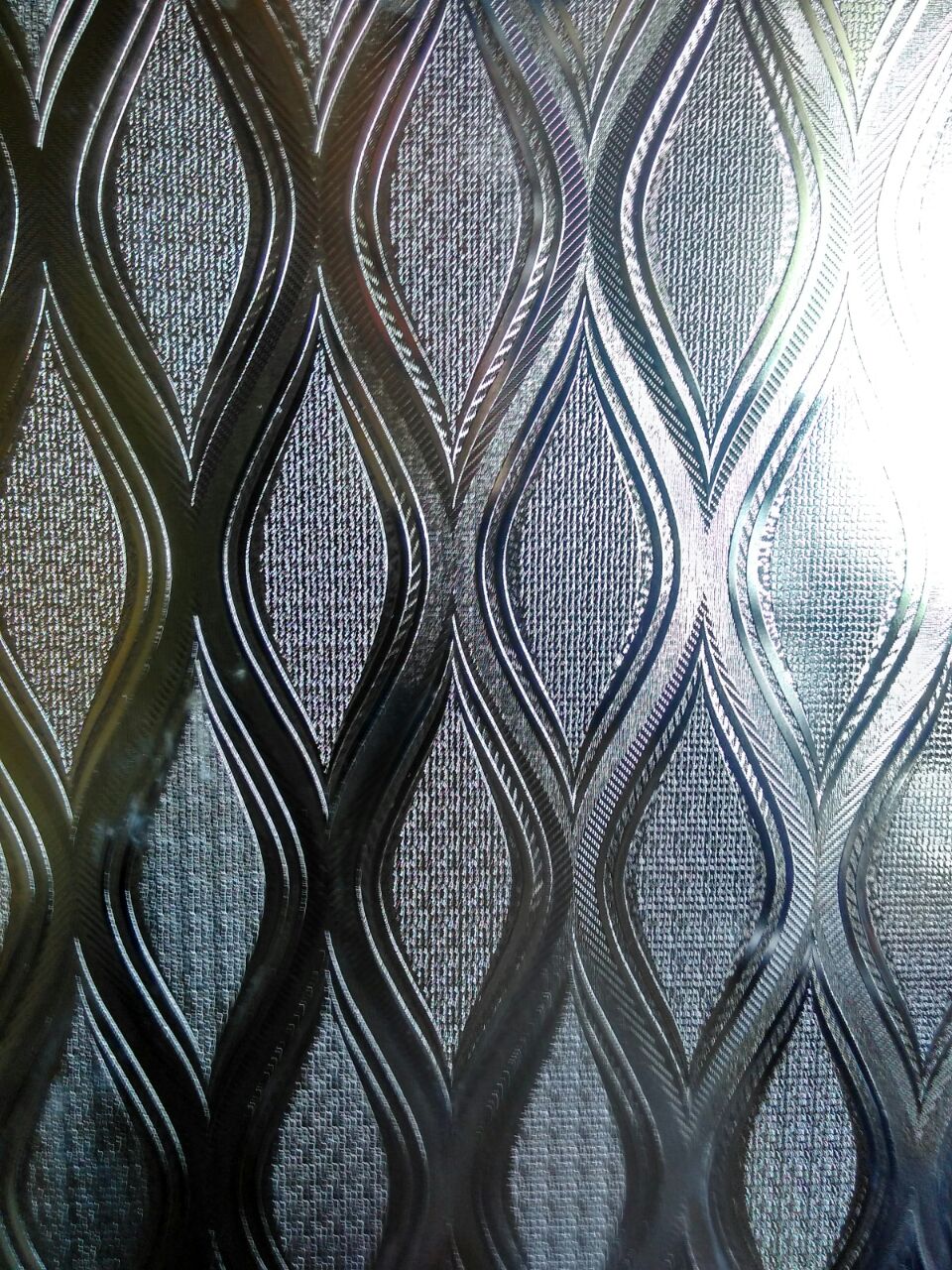

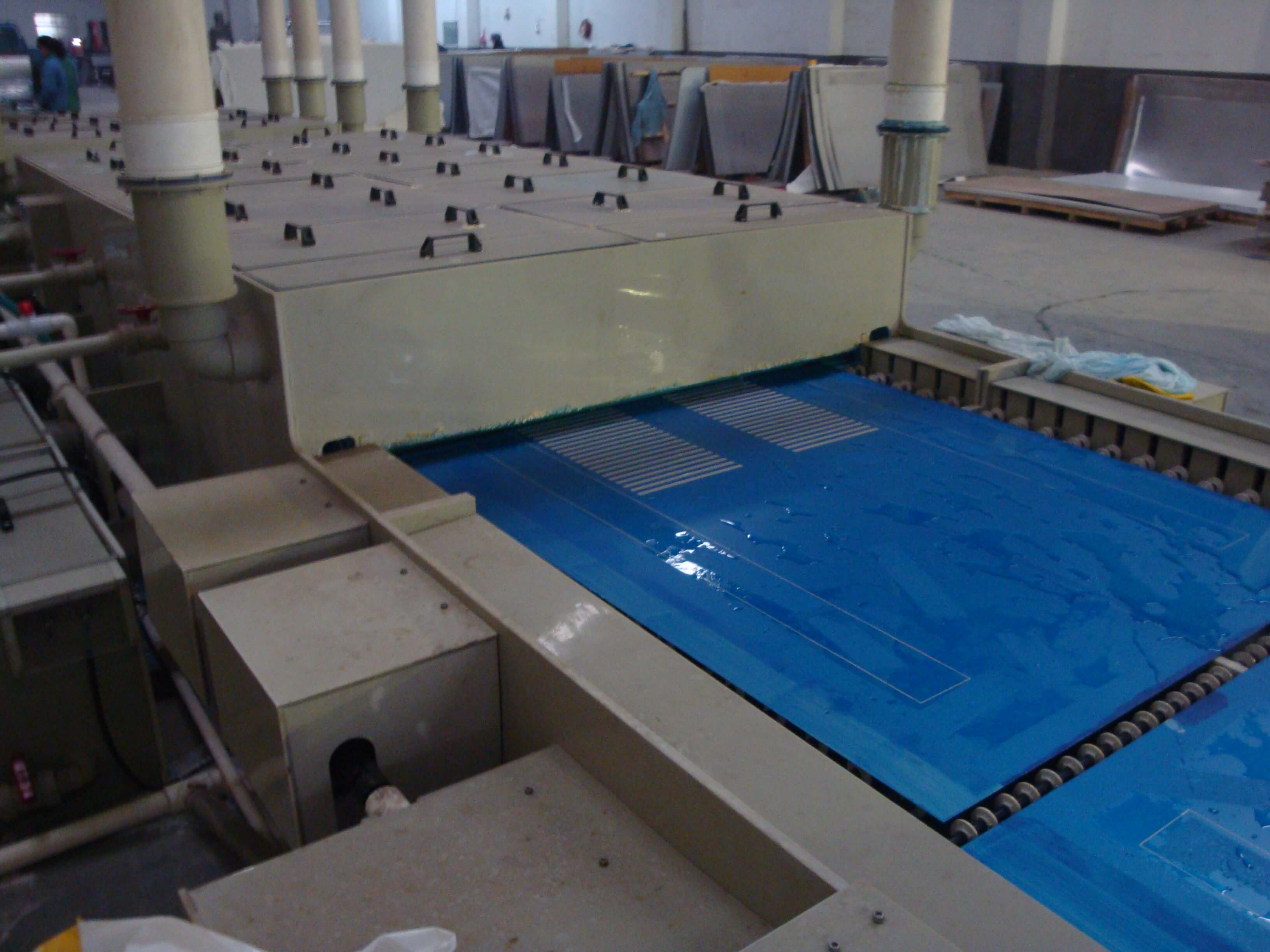

Etching for stainless steel press plate:

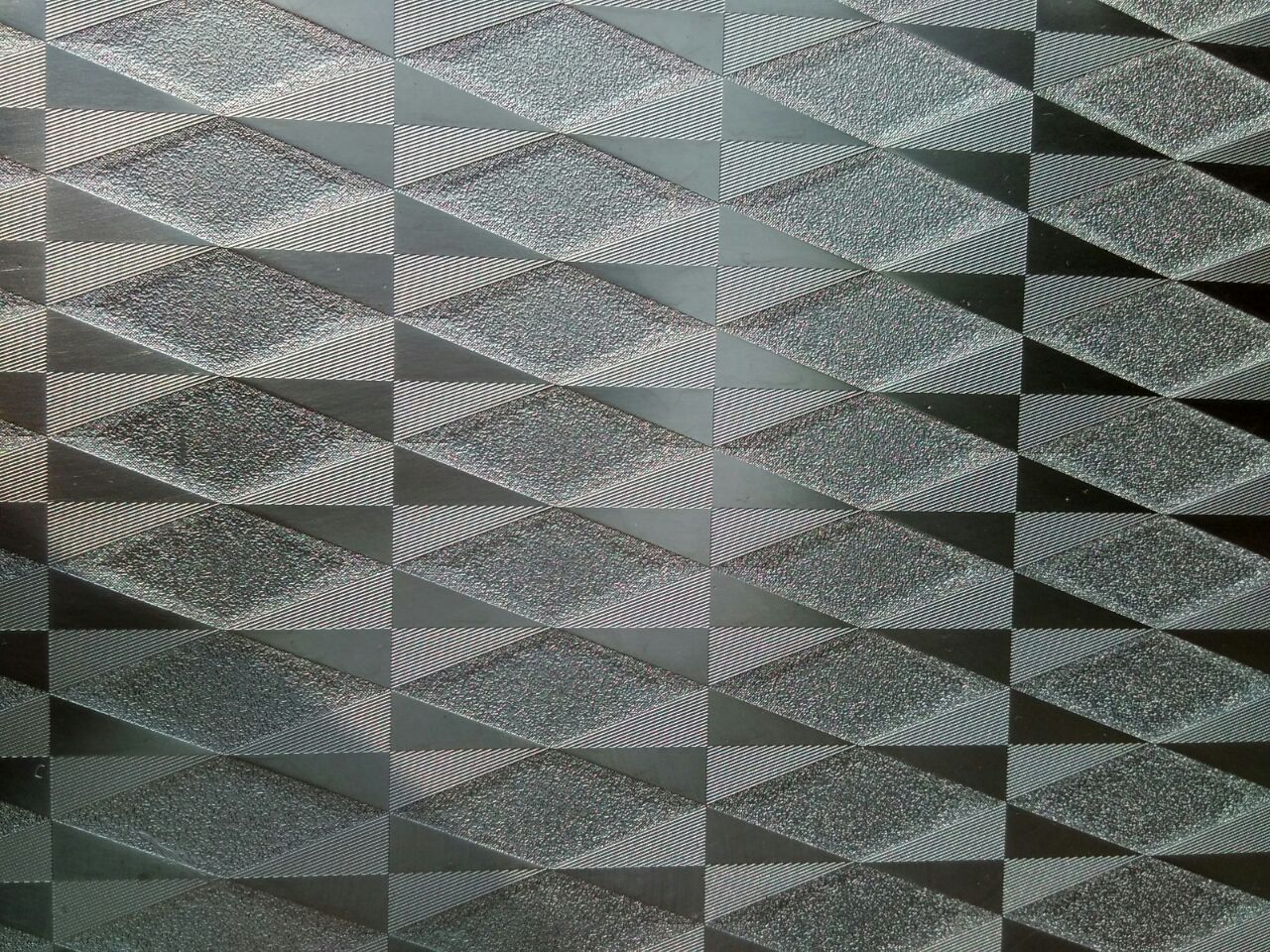

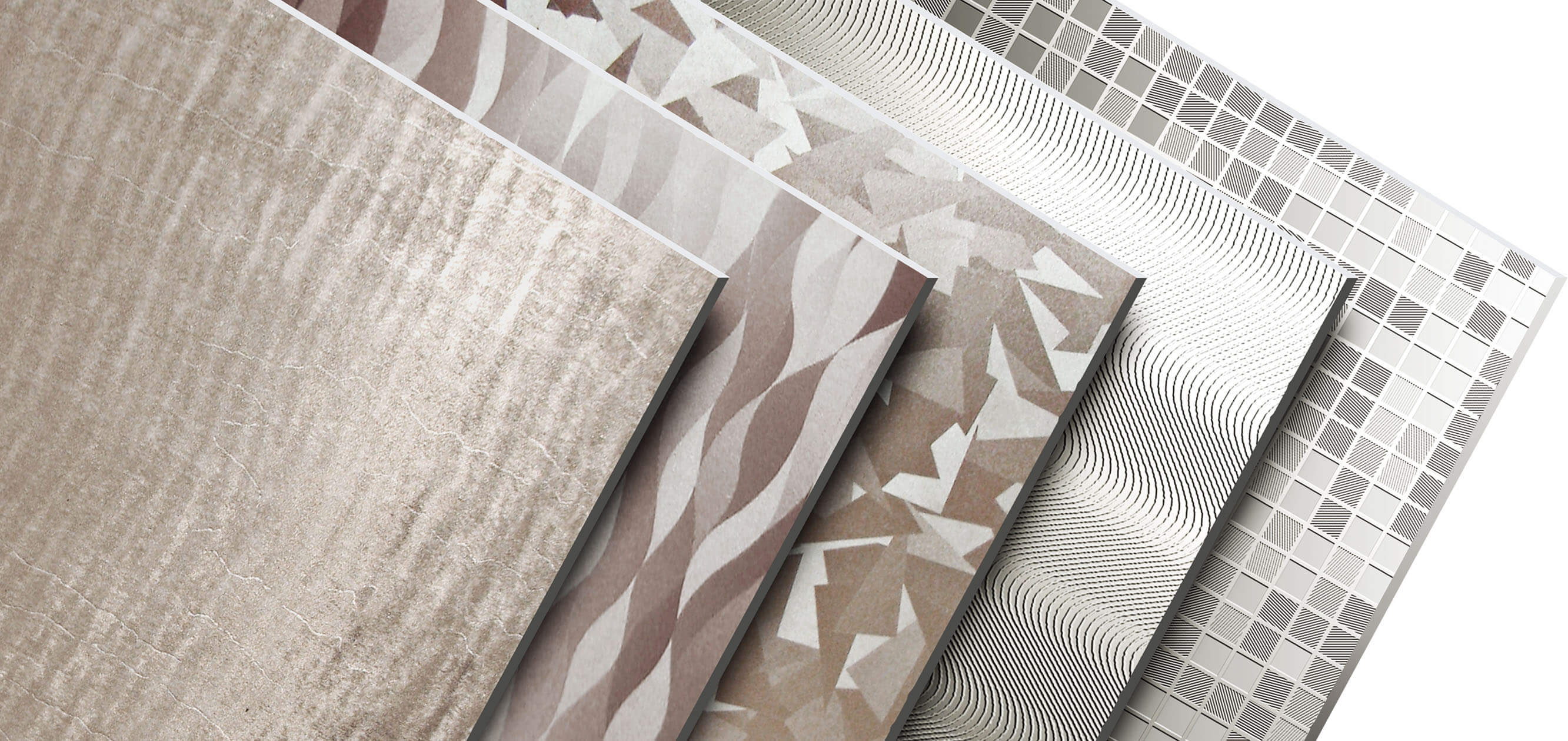

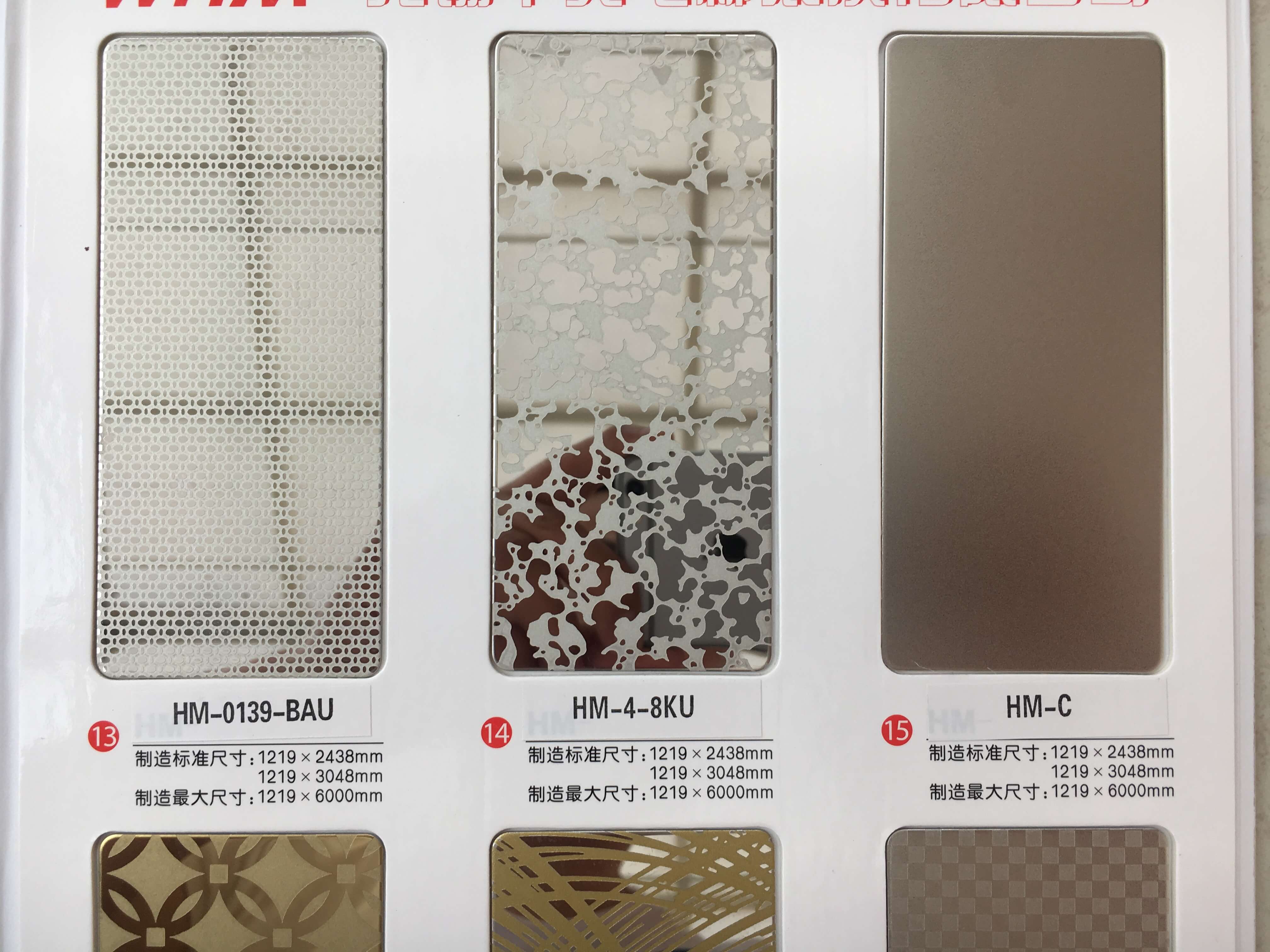

Etching for stainless steel decoration sheets:

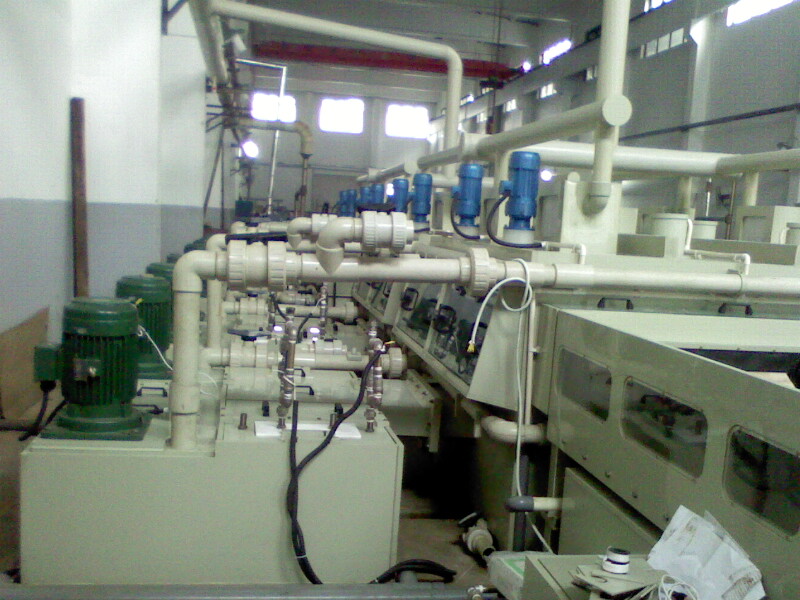

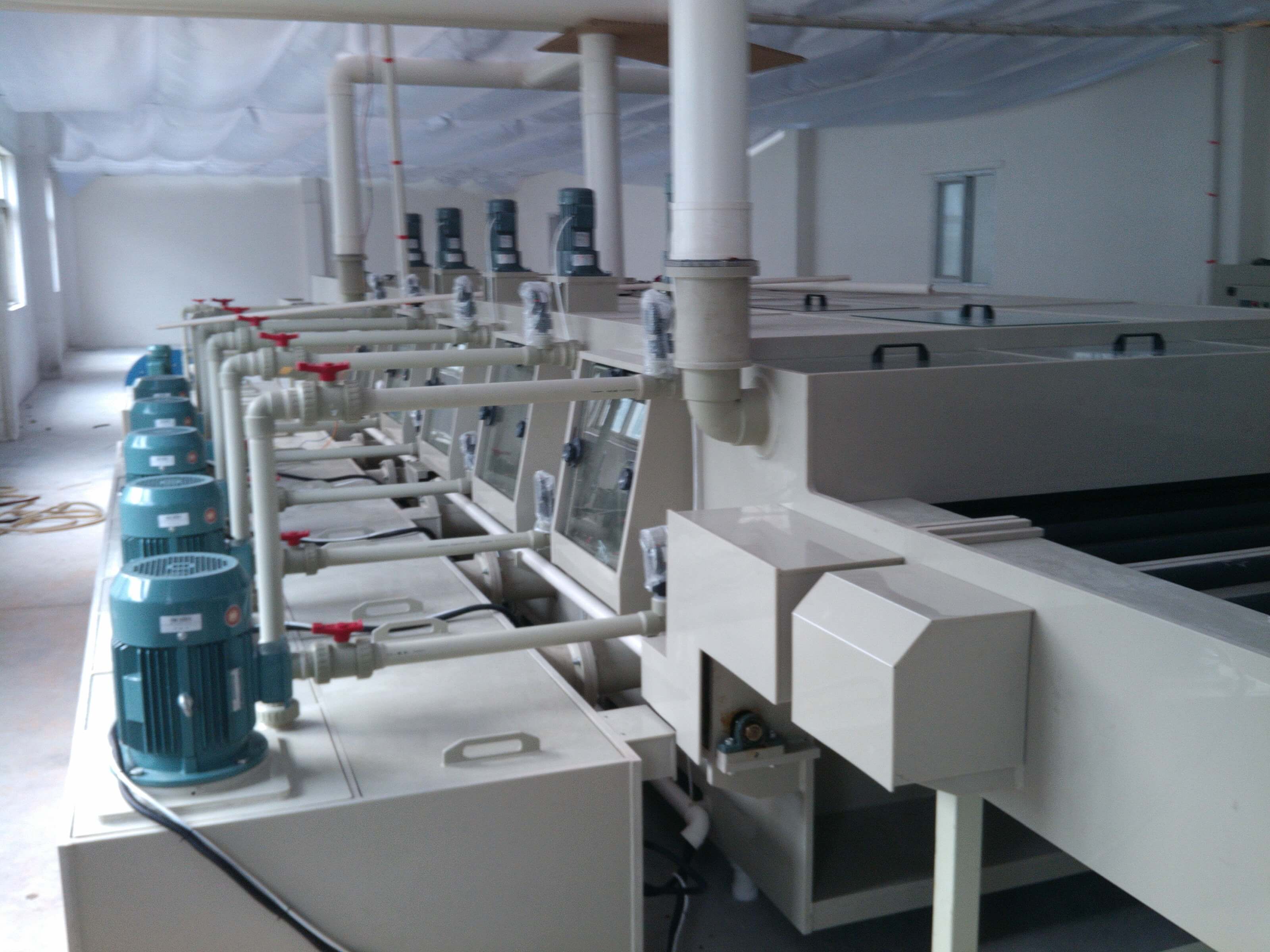

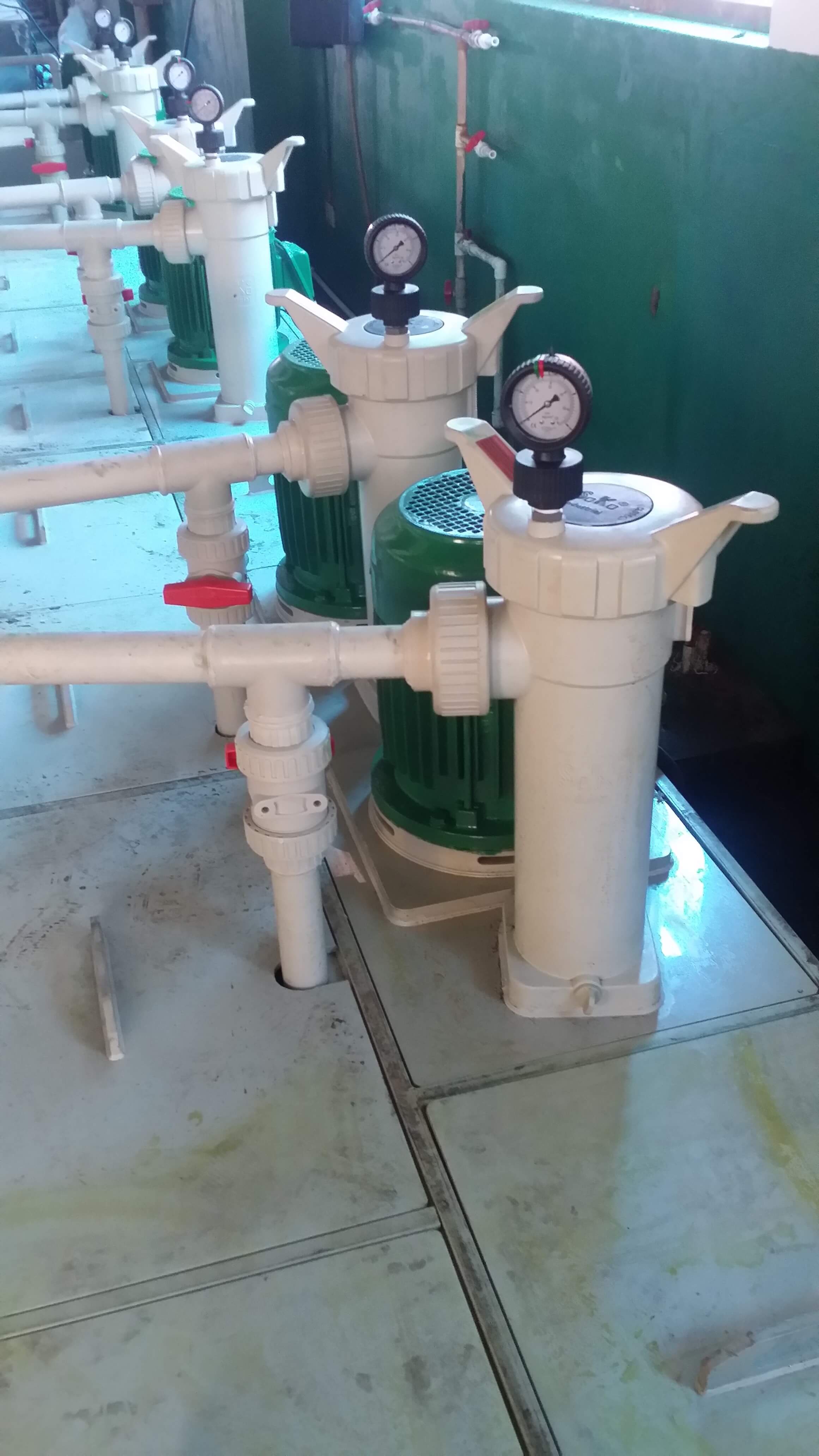

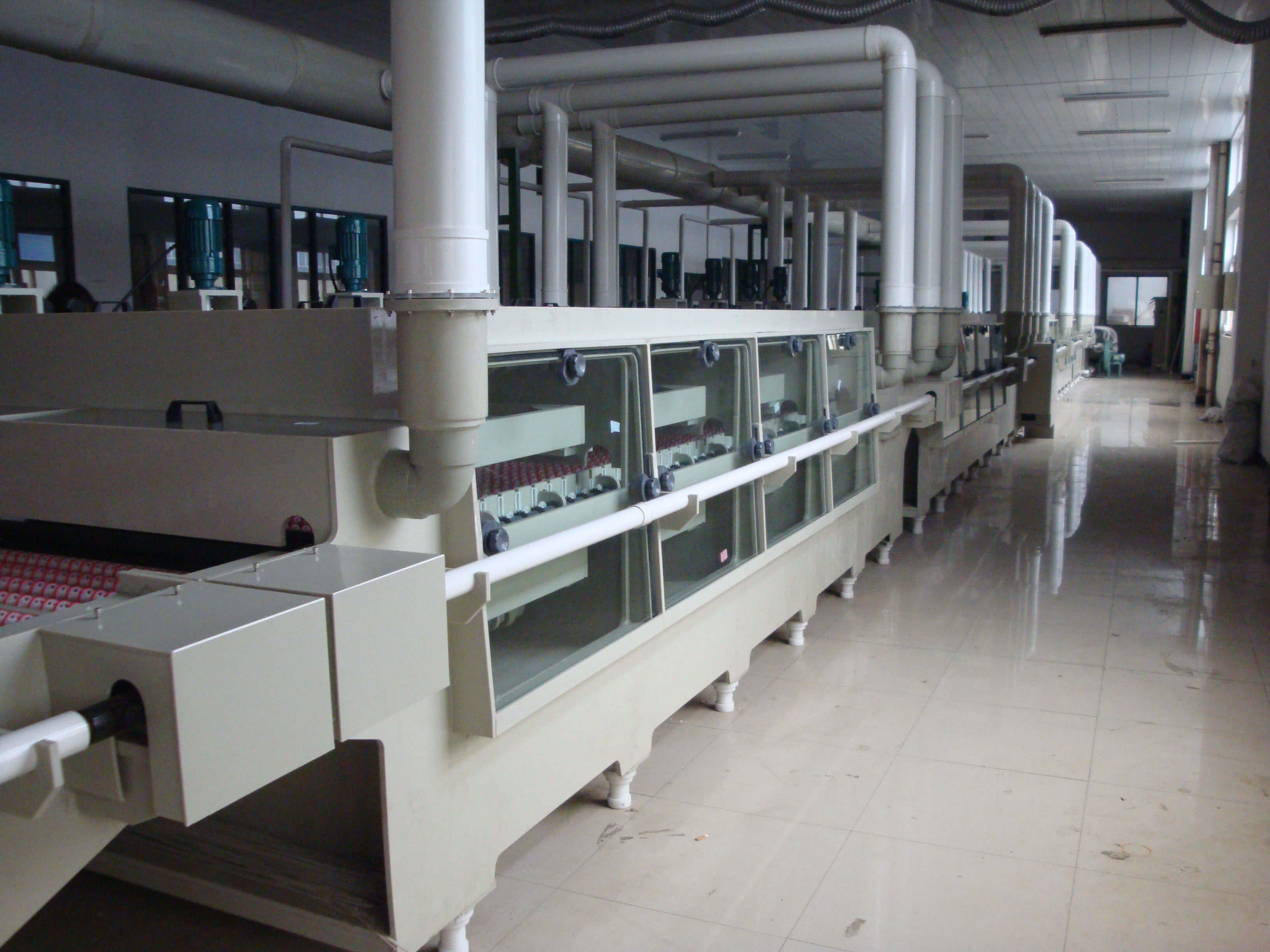

Machine detail parts:

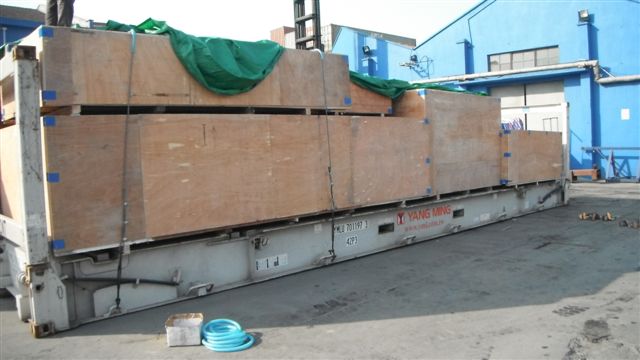

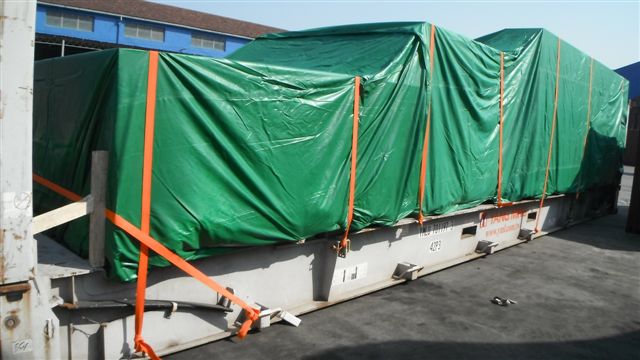

Shipment of machine:
