Electrical polishing machine for stainless steel press plate

  • BJ-ELECTRO

  • BJ

Availability:
Quantity:


Product Description:


Electrolytic machine for stainless steel press plate is using stainless steel press plate as anode, and machine lead rod as cathode, put them to the chemical in the electrolytic tank, using direct electric current, and the stainless steel plate surface will be action with chemical, which will make stainless steel press plate surface to become very shiny, and its surface glossy is higher, also which can make the plate surface pattern touch smoothly.

This machine is a necessary machine for producing stainless steel press plate for HPL, LPM, Flooring and furniture industries.




Main Parameters:


1, Electrolytic machine includes these parts: rectifier, electrotype tank, clean tank, electrode, electric power control box.

2electric power:about 6000A/15V;connect 380V electric.

3, total power of equipment:about 120KW.

4, Eelectrolytic tank size:3515×940×2130(mm)(L×W×H);

5, use titanium material to do electric heat up

6, use PP soft tube coil pipe deep water to cooling

7, Tank body use steel to weld the frame, inside 20mm thickness polypropylene plate high strength weld

8, hanging tool use titanium material to make

9, electric conduction main electrode using high quality copper line.

10, cathode using leading to do electric conduction

11, clean tank size: 3440×940×1780(mm)(L×W×H)

12, electrotype chemical capacity is about 5 tons.




Detail pictures of machine:

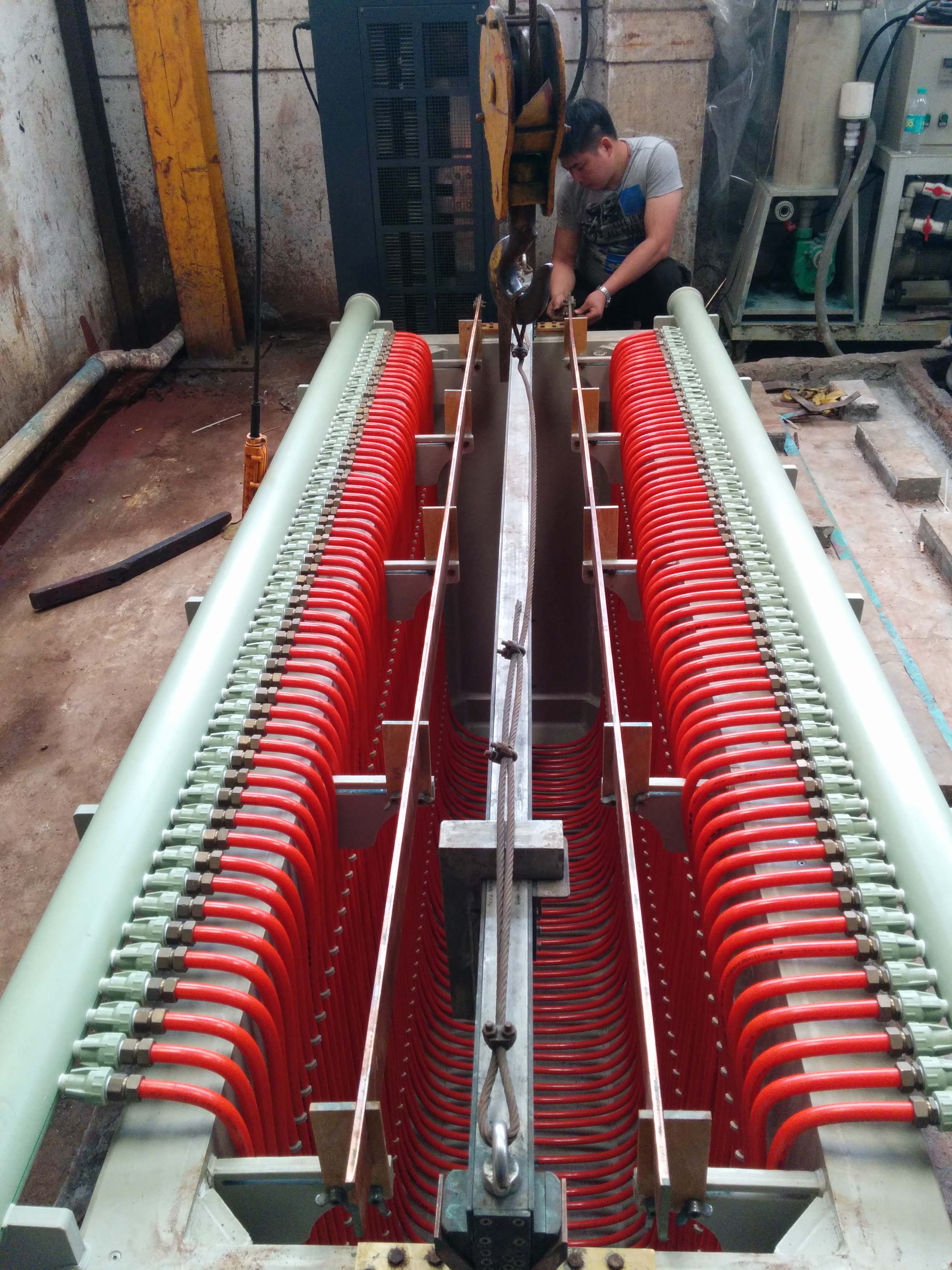

Electrolytic machine for stainless steel press plate 3.jpg

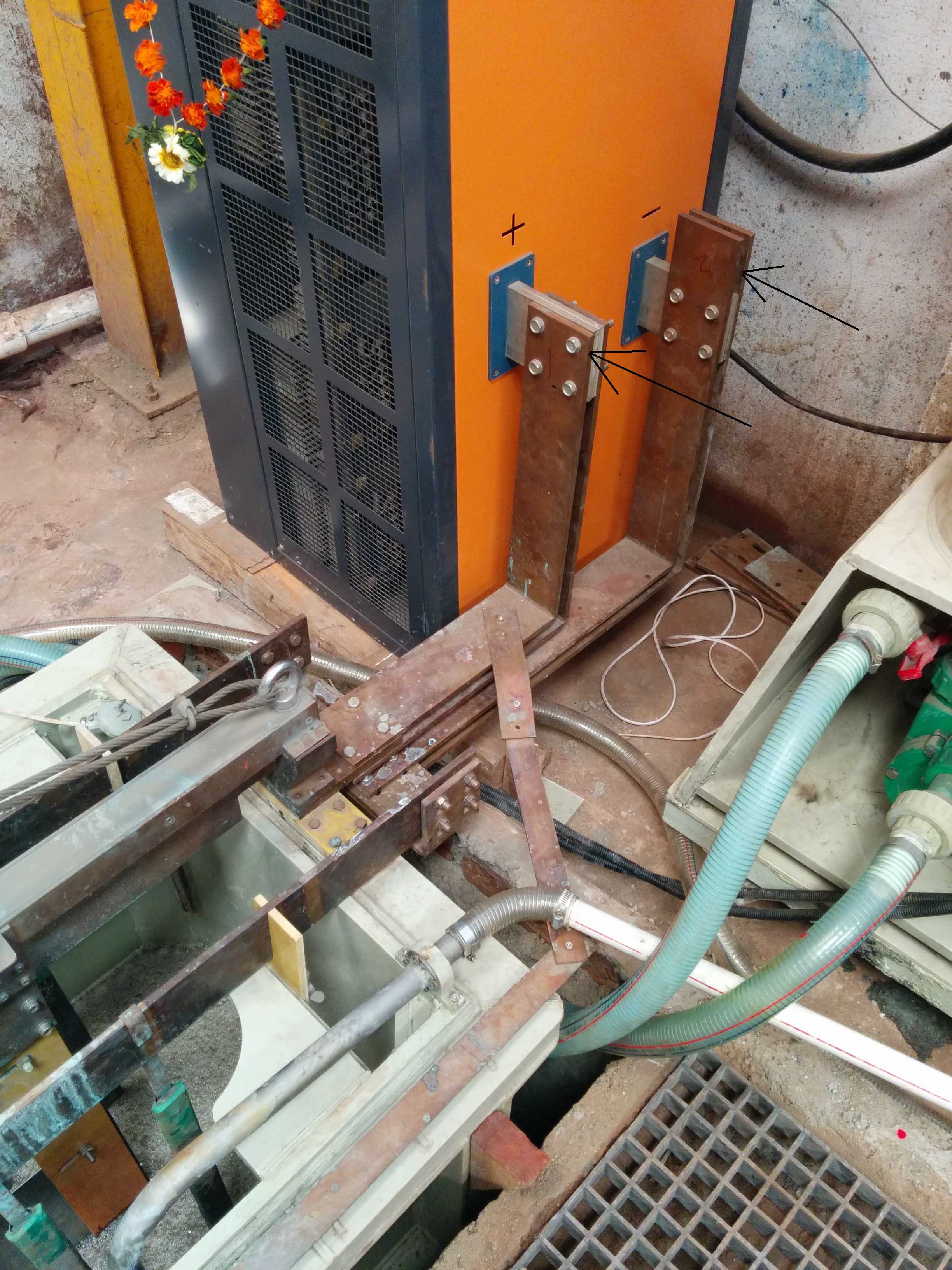

Electrolytic machine for stainless steel press plate 1.jpg


Electrolytic machine for stainless steel press plate 2.png

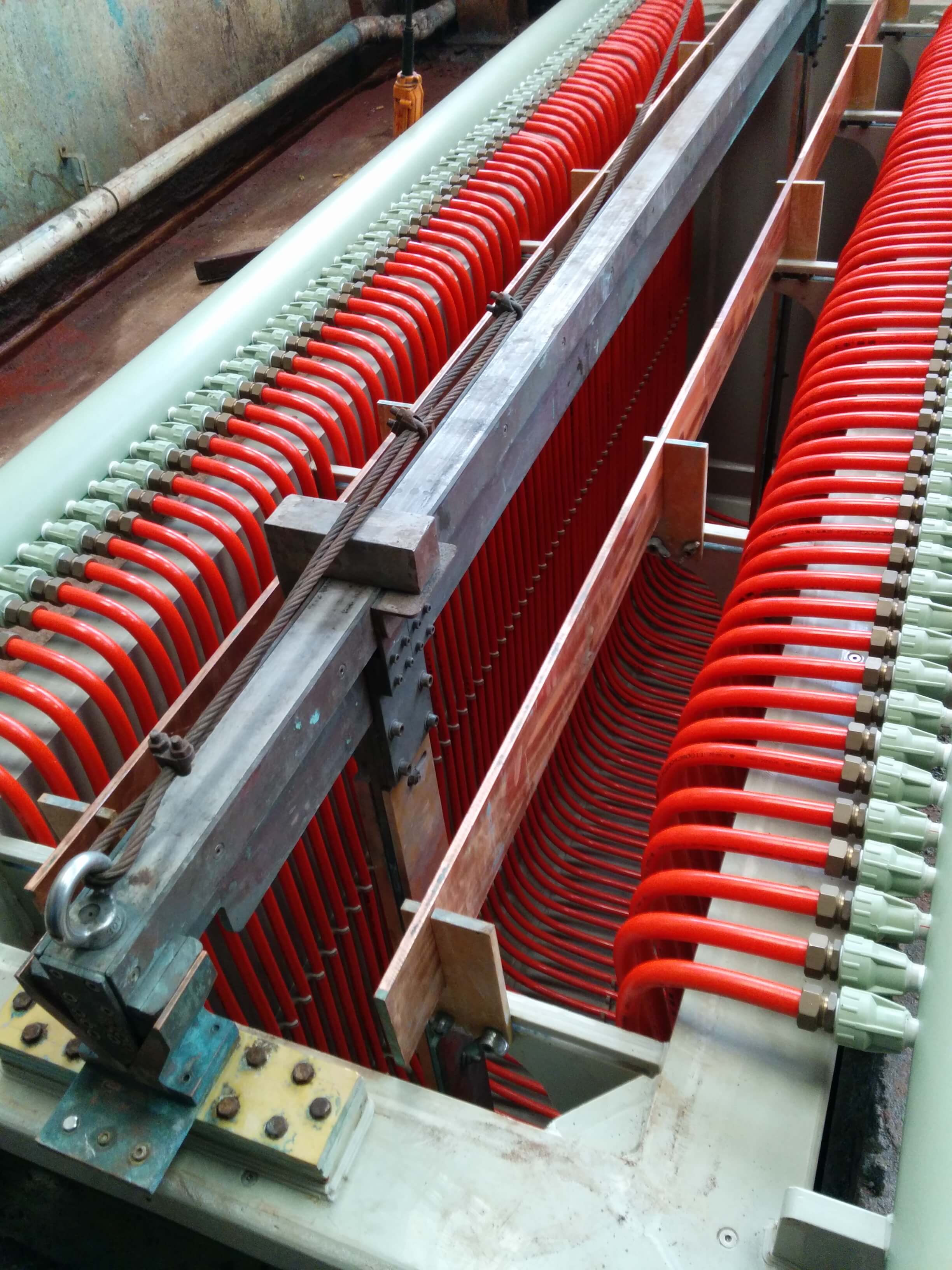

Electrolytic machine for stainless steel press plate 4.jpg

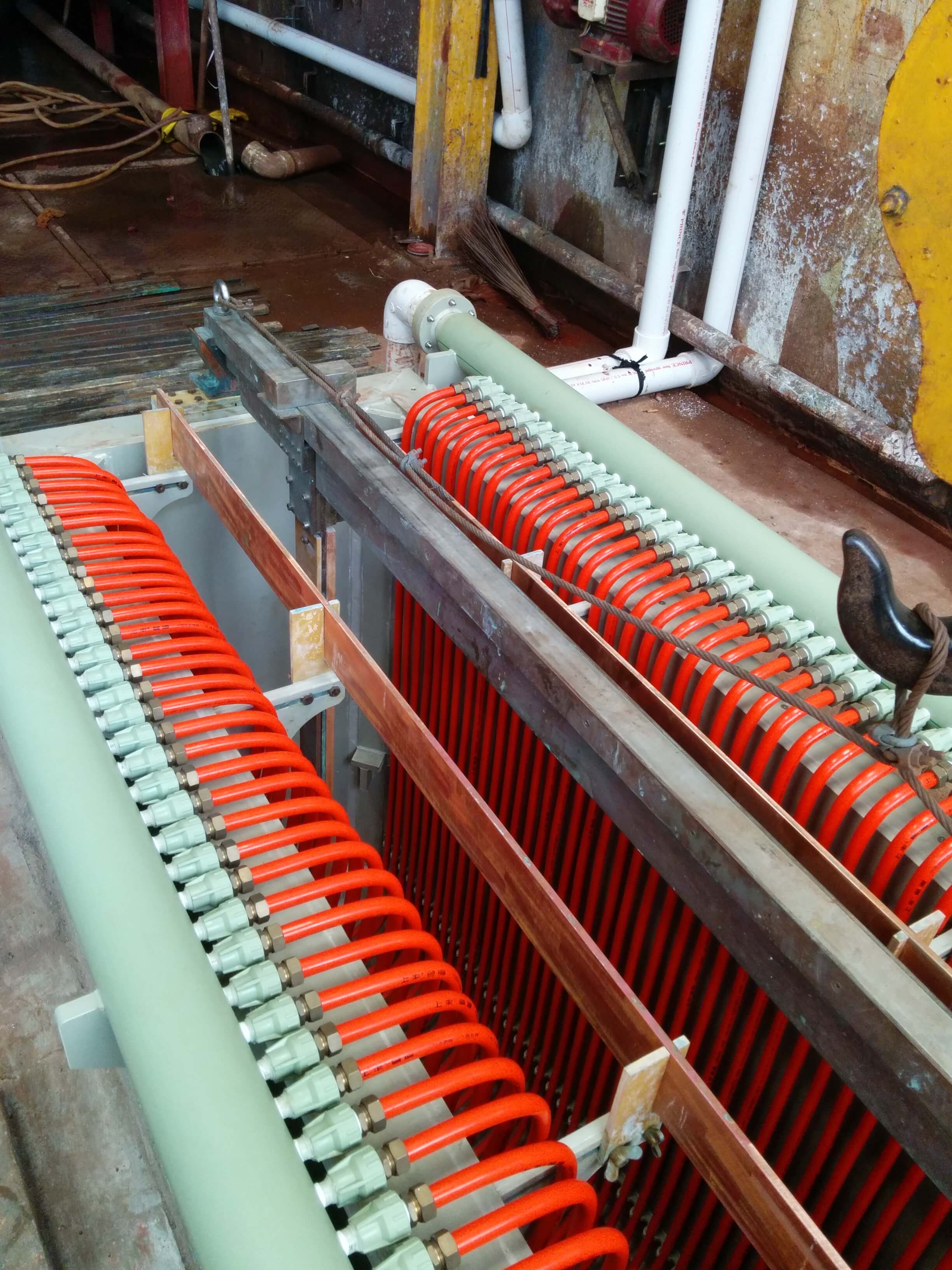

Electrolytic machine for stainless steel press plate 5.jpg
